Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46026 |

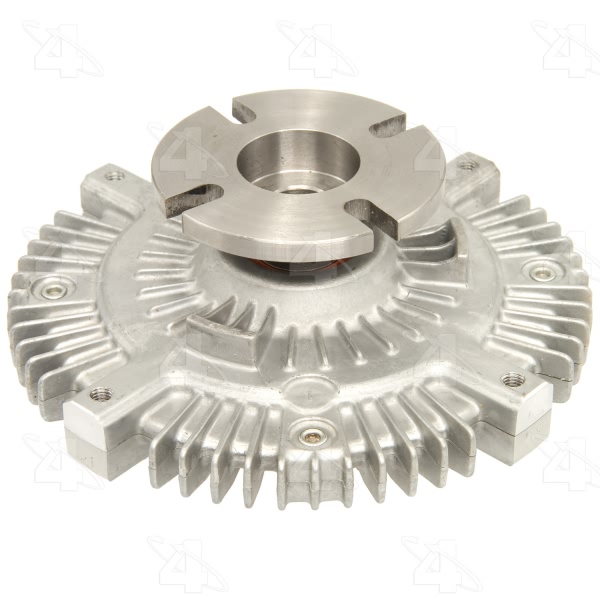

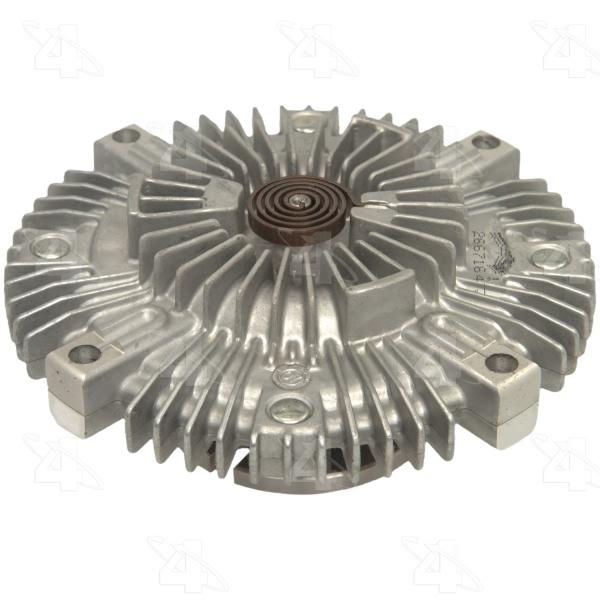

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.2 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.17 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 5.65 or 5.66 |
Fan Bolt Circle MM | 143.5 or 143.51 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 3 |
Mount Dia. MM | 76 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 157.5 |
Overall Height IN | 2.73 or 2.74 |
Overall Height MM | 69.6 |
Performance Rated | Yes |
Pilot Depth IN | 0.5 |
Pilot Depth MM | 12.7 |
Pilot Dia. IN | 1.25 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361460263 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
2003-2005 Infiniti G35 | All Trims | All Engines |
