Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46025 |

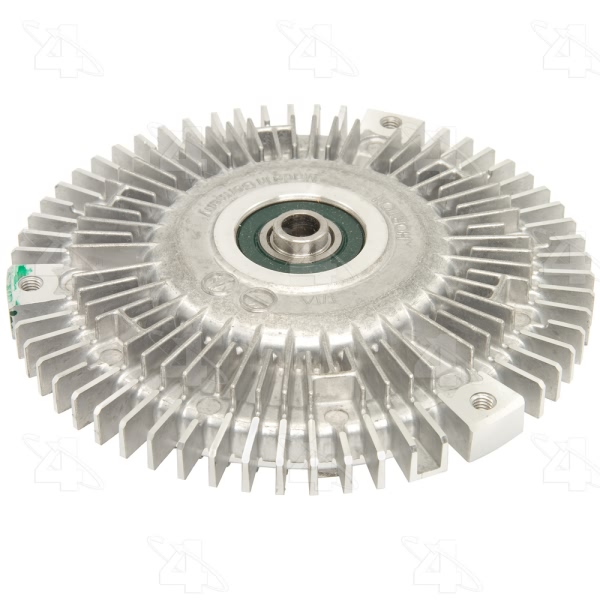

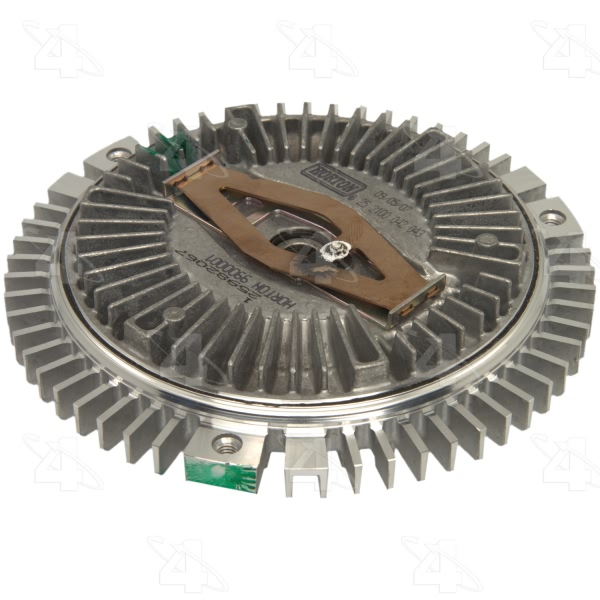

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 3 |
Bolt Quantity | 3 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.3 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 0.95 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 5.79 |
Fan Bolt Circle MM | 147.1 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 0.59 |
Mount Dia. MM | 15 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 3 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 160 or 160.02 |
Overall Height IN | 1.5 |
Overall Height MM | 38.1 |
Performance Rated | Yes |
Pilot Depth IN | -- |
Pilot Dia. IN | 0.41 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361460256 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
2003-2006 Dodge Sprinter 2500 | All Trims | All Engines |
2003-2006 Dodge Sprinter 3500 | All Trims | All Engines |
2002-2006 Freightliner Sprinter 2500 | All Trims | All Engines |
2002-2006 Freightliner Sprinter 3500 | All Trims | All Engines |
