Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46011 |

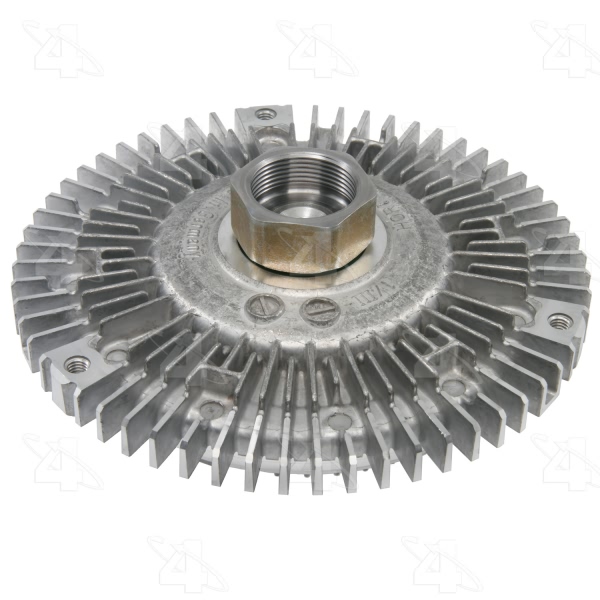

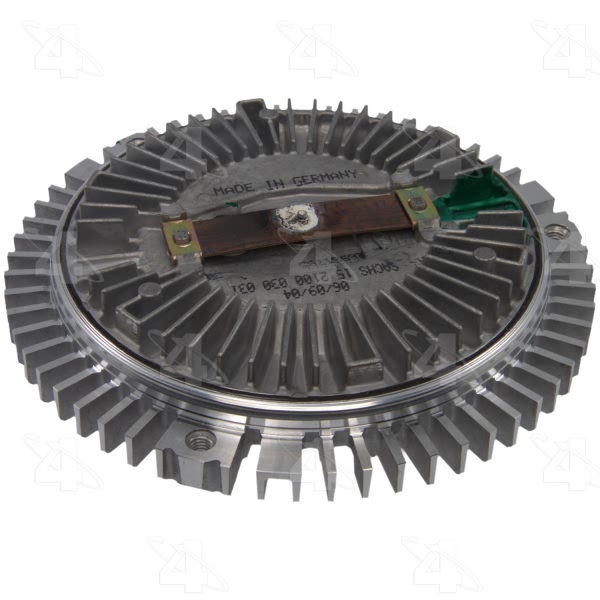

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 3 |
Bolt Quantity | 3 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.3 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.41 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 5.79 |
Fan Bolt Circle MM | 147.1 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.44 (36mm) HEX |
Mount Dia. MM | 36 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 3 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 160 or 160.02 |
Overall Height IN | 2.05 |
Overall Height MM | 52 |
Performance Rated | Yes |
Pilot Depth IN | 0.52 |
Pilot Depth MM | 13.2 |
Pilot Dia. IN | M30x1.500 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361460119 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1998-2000 Mercedes-Benz C280 | All Trims | All Engines |
1998-2000 Mercedes-Benz C43 AMG | All Trims | All Engines |
1999-2003 Mercedes-Benz CLK430 | All Trims | All Engines |
2001-2002 Mercedes-Benz CLK55 AMG | All Trims | All Engines |
1998-2003 Mercedes-Benz E320 | All Trims | All Engines |
