Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46010 |

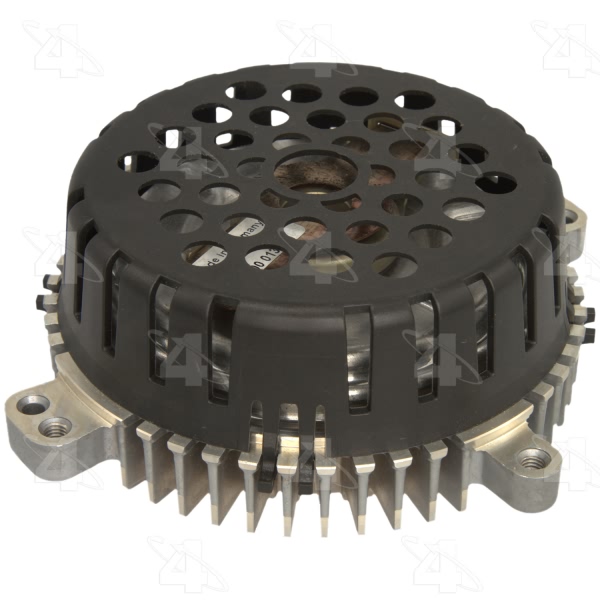

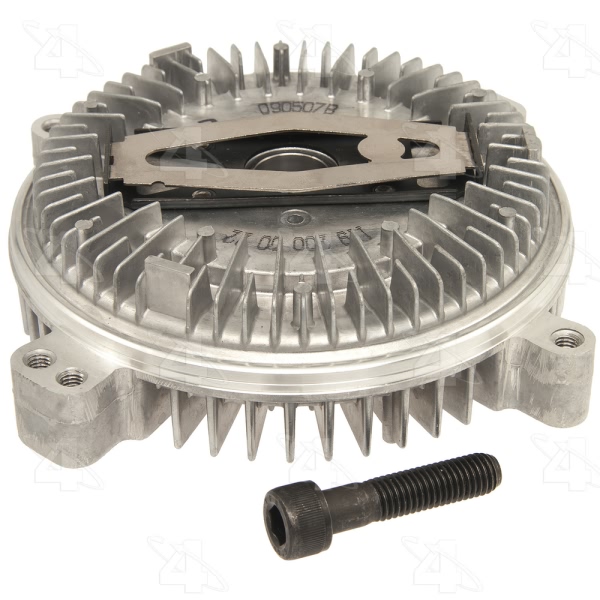

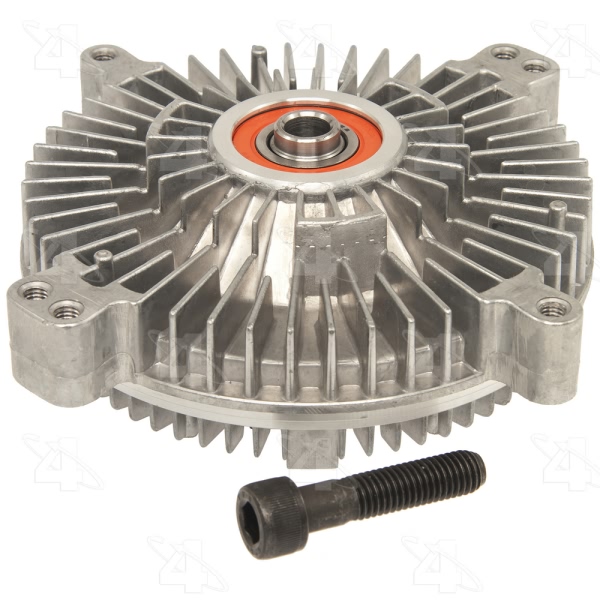

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 3 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.51 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.259 or 1.26 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 5.98 |
Fan Bolt Circle MM | 151.9 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 0.59 |
Mount Dia. MM | 15 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 165.4 |
Overall Height IN | 2.76 to 2.05 |
Overall Height MM | 70.1 |
Performance Rated | Yes |
Pilot Depth IN | 0.52 |
Pilot Dia. IN | 0.41 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361460102 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1981 Mercedes-Benz 380SLC | All Trims | All Engines |
1992-1993 Mercedes-Benz 400E | All Trims | All Engines |
1992 Mercedes-Benz 400SE | All Trims | All Engines |
1993 Mercedes-Benz 400SEL | All Trims | All Engines |
1992-1993 Mercedes-Benz 500E | All Trims | All Engines |
1993 Mercedes-Benz 500SEC | All Trims | All Engines |
1992-1993 Mercedes-Benz 500SEL | All Trims | All Engines |
1990-1993 Mercedes-Benz 500SL | All Trims | All Engines |
1998-2000 Mercedes-Benz CL500 | All Trims | All Engines |
1994-1999 Mercedes-Benz S420 | All Trims | All Engines |
