Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46008 |

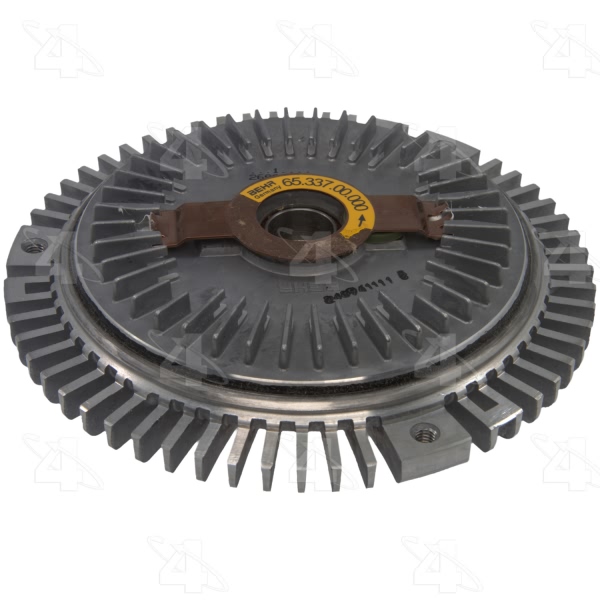

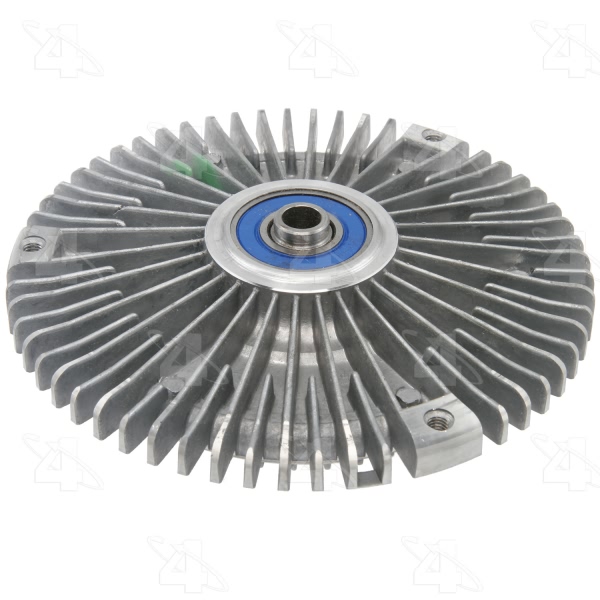

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 3 |
Bolt Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.3 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 0.95 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 5.79 |
Fan Bolt Circle MM | 147.1 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 0.59 |
Mount Dia. MM | 15 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 3 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 160 |
Overall Height IN | 1.62 or 1.63 |
Overall Height MM | 41.1 |
Performance Rated | Yes |
Pilot Depth IN | -- |
Pilot Dia. IN | 0.42 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361460089 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1957 Mercedes-Benz 300C | All Trims | All Engines |
1978-1985 Mercedes-Benz 300CD | All Trims | All Engines |
1960-1962 Mercedes-Benz 300D | All Trims | All Engines |
1975-1985 Mercedes-Benz 300D | All Trims | All Engines |
1987 Mercedes-Benz 300D | All Trims | All Engines |
1986-1987 Mercedes-Benz 300E | All Trims | All Engines |
1957 Mercedes-Benz 300SC | All Trims | All Engines |
1978-1985 Mercedes-Benz 300SD | All Trims | All Engines |
1986-1987 Mercedes-Benz 300SDL | All Trims | All Engines |
1960-1966 Mercedes-Benz 300SE | All Trims | All Engines |
