Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46005 |

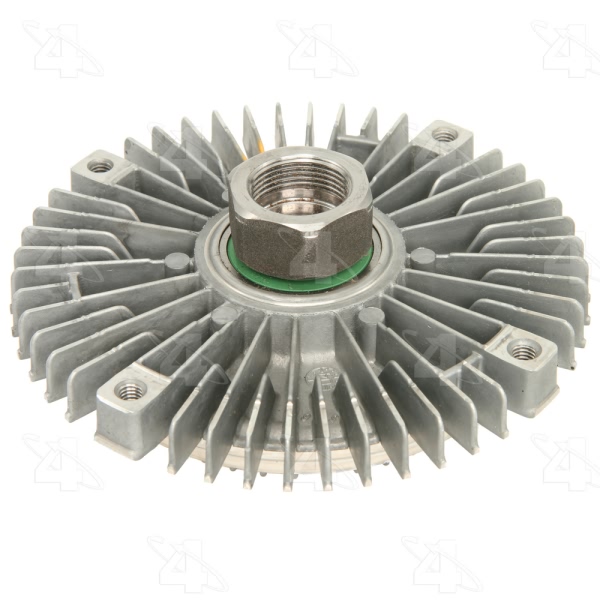

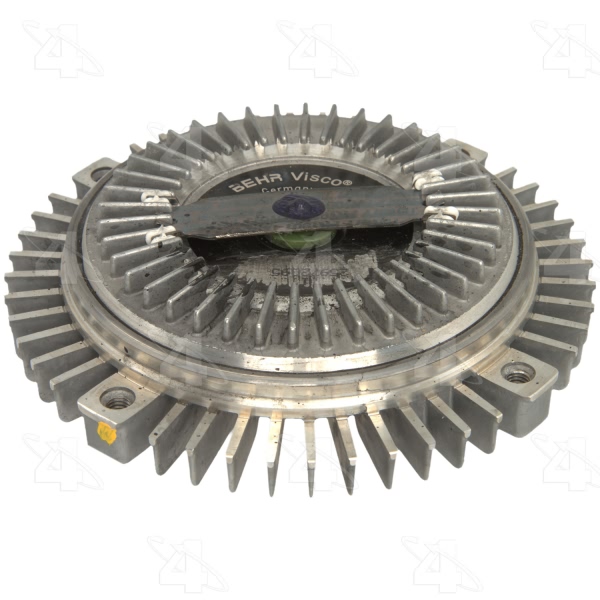

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 3 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 5.49 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.28 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 4.88 |
Fan Bolt Circle MM | 124 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.26 HEX |
Mount Dia. MM | 32 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 139.4 |
Overall Height IN | 1.95 or 1.97 |
Overall Height MM | 50 |
Performance Rated | Yes |
Pilot Depth IN | 0.51 |
Pilot Depth MM | 12.8 |
Pilot Dia. IN | M24x1.500 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361460058 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1996 Audi A4 | All Trims | All Engines |
1997-2001 Audi A4 | All Trims | 6 Cyl 2.8L |
1996 Audi A4 Quattro | All Trims | All Engines |
1997-2001 Audi A4 Quattro | All Trims | 6 Cyl 2.8L |
1998-2001 Audi A6 | All Trims | All Engines |
1998-1999 Audi A6 Quattro | All Trims | All Engines |
2000-2001 Audi A6 Quattro | All Trims | 6 Cyl 2.8L |
2000-2004 Audi A6 Quattro | All Trims | 6 Cyl 2.7L |
2000-2002 Audi S4 | All Trims | All Engines |
1998-2005 Volkswagen Passat | All Trims | 6 Cyl 2.8L |
