Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46003 |

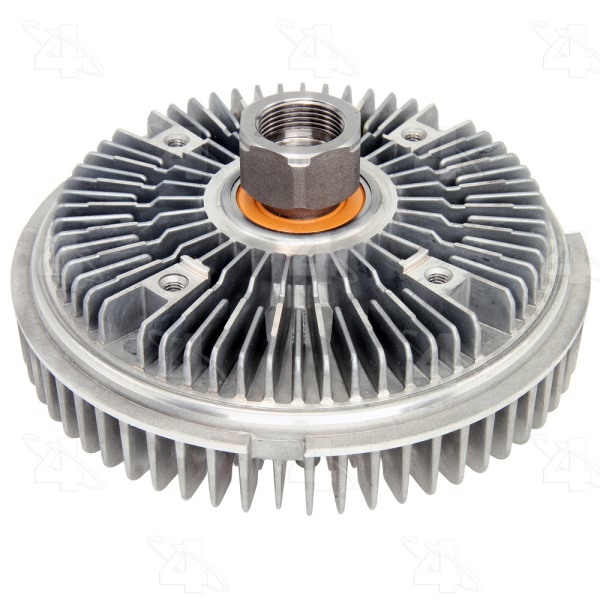

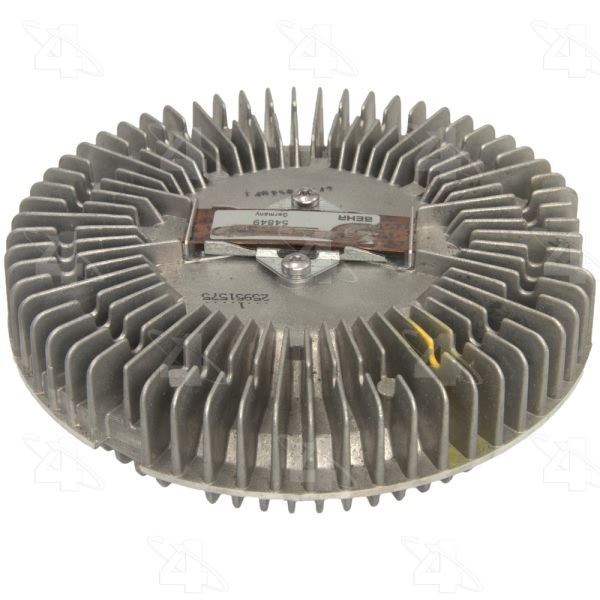

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.318 or 6.32 or 6.320 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.03 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 3.83 |
Fan Bolt Circle MM | 97 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.26 HEX |
Mount Dia. MM | 32 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 160.5 |
Overall Height IN | 2.78 |
Overall Height MM | 70.6 |
Performance Rated | Yes |
Pilot Depth IN | 0.59 or 0.6 |
Pilot Depth MM | 15.2 or 15.24 |
Pilot Dia. IN | M24x1.500 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361460034 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
2002-2005 BMW 745Li | All Trims | All Engines |
2002-2005 BMW 745i | All Trims | All Engines |
2003-2008 BMW 760Li | All Trims | All Engines |
2004-2006 BMW 760i | All Trims | All Engines |
2000 BMW X5 | All Trims | All Engines |
2001-2003 BMW X5 | All Trims | 8 Cyl 4.4L |
2002-2003 BMW X5 | All Trims | 8 Cyl 4.6L |
2003-2005 Land Rover Range Rover | All Trims | All Engines |
