Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46001 |

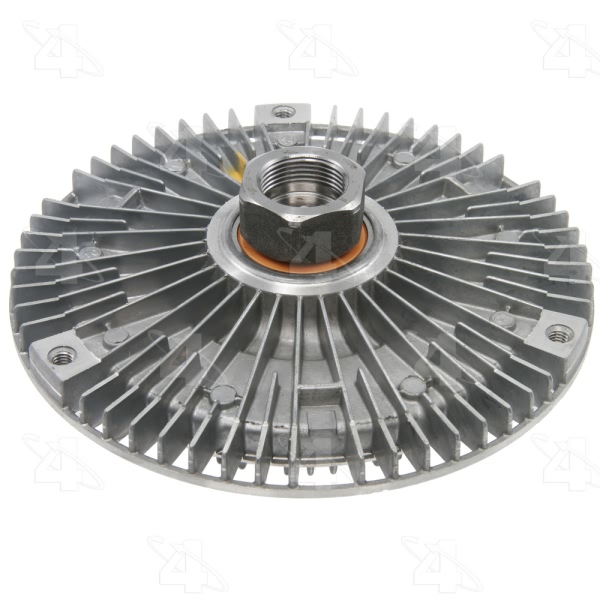

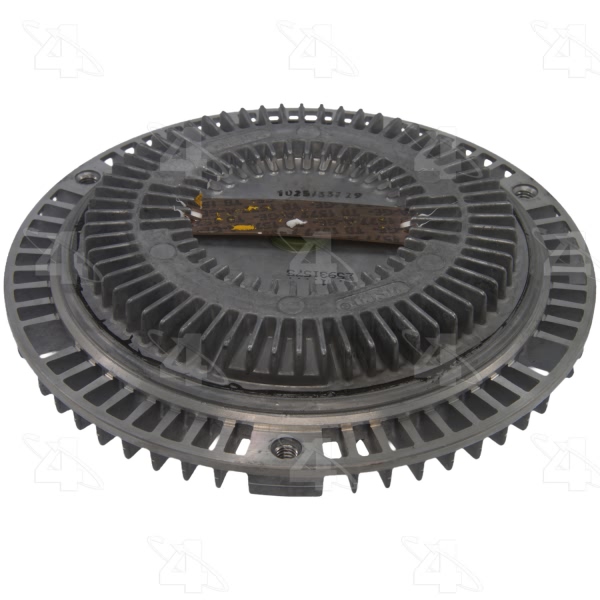

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 3 |
Bolt Quantity | 3 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.3 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.455 or 1.46 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 5.79 |
Fan Bolt Circle MM | 147.1 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.25 HEX |
Mount Dia. MM | 32 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 3 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 160 or 160.02 |
Overall Height IN | 2.08 |
Overall Height MM | 52.8 |
Performance Rated | Yes |
Pilot Depth IN | 0.51 |
Pilot Depth MM | 12.9 |
Pilot Dia. IN | M24x1.500 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361460010 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1994-1995 BMW 530i | All Trims | All Engines |
1994-1995 BMW 540i | All Trims | All Engines |
1997-2003 BMW 540i | All Trims | All Engines |
1993-1995 BMW 740i | All Trims | All Engines |
1997-2001 BMW 740i | All Trims | All Engines |
1993-2001 BMW 740iL | All Trims | All Engines |
1988-2001 BMW 750iL | All Trims | All Engines |
1994-1997 BMW 840Ci | All Trims | All Engines |
1994-1995 BMW 850CSi | All Trims | All Engines |
1993-1997 BMW 850Ci | All Trims | All Engines |
