Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46000 |

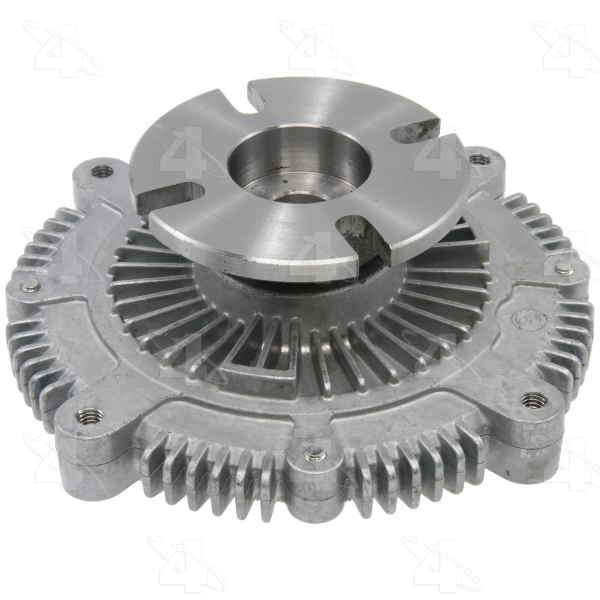

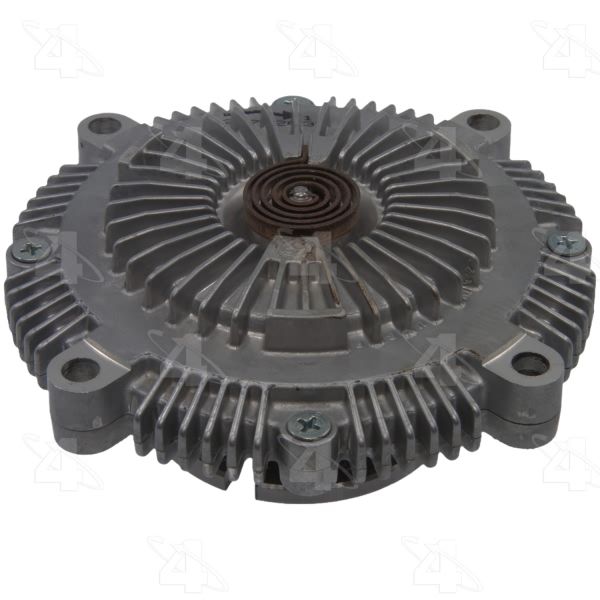

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 5.85 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.82 or 1.83 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 5.27 |
Fan Bolt Circle MM | 133.9 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 3 |
Mount Dia. MM | 76 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 148.6 |
Overall Height IN | 2.34 |
Overall Height MM | 59.4 |
Performance Rated | Yes |
Pilot Depth IN | 0.46 |
Pilot Depth MM | 11.7 |
Pilot Dia. IN | .63 to 1.25 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361460003 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1970 Nissan 240Z | All Trims | All Engines |
1975 Nissan 260Z | All Trims | All Engines |
1981 Nissan 810 | All Trims | 6 Cyl 2.8L |
1990-1994 Nissan D21 | All Trims | 4 Cyl 2.4L |
1998 Nissan Frontier | All Trims | All Engines |
1999-2004 Nissan Frontier | All Trims | 4 Cyl 2.4L |
1981-1983 Nissan Maxima | All Trims | 6 Cyl 2.8L |
1994 Nissan Pickup | All Trims | All Engines |
1995 Nissan Pickup | All Trims | 4 Cyl 2.4L |
1996-2009 Nissan Pickup | All Trims | All Engines |
