Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36998 |

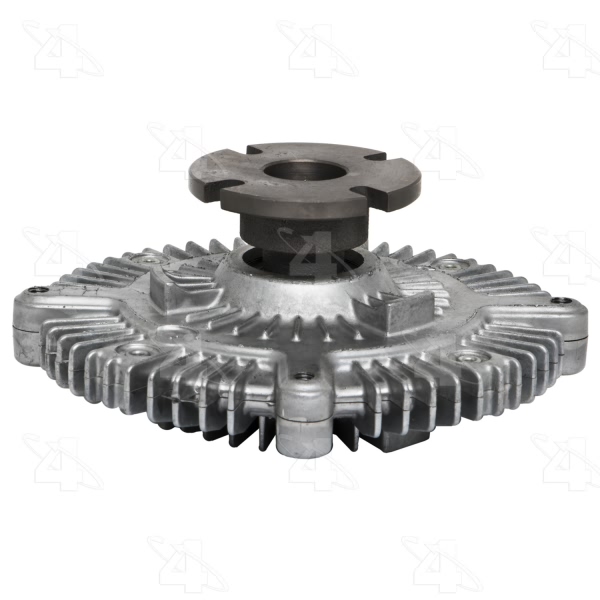

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.65 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.34 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 6.03 |
Fan Bolt Circle MM | 153.2 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 2.68 |
Mount Dia. MM | 68 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 168.9 |
Overall Height IN | 2.91 |
Overall Height MM | 73.9 |
Performance Rated | Yes |
Pilot Depth IN | 0.55 |
Pilot Depth MM | 13.97 or 14 |
Pilot Dia. IN | .63 to .95 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361369986 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1983-1985 Dodge Power Ram 50 | All Trims | 4 Cyl 2.3L |
1989 Dodge Raider | All Trims | 6 Cyl 3.0L |
1983-1985 Dodge Ram 50 | All Trims | 4 Cyl 2.3L |
1990-1991 Dodge Ram 50 | All Trims | 6 Cyl 3.0L |
1983-1985 Mitsubishi Mighty Max | All Trims | 4 Cyl 2.3L |
1990-1994 Mitsubishi Mighty Max | All Trims | 6 Cyl 3.0L |
1989 Mitsubishi Montero | All Trims | 6 Cyl 3.0L |
1990-2000 Mitsubishi Montero | All Trims | All Engines |
1999-2002 Mitsubishi Montero Sport | All Trims | 6 Cyl 3.5L |
