Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36997 |

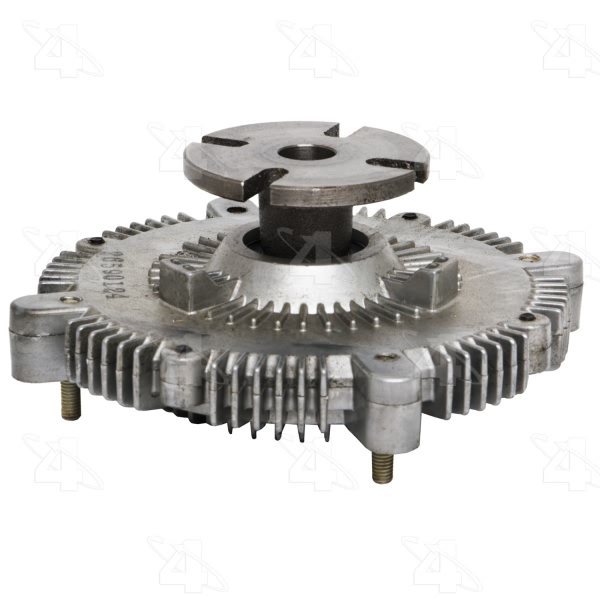

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.65 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.289 or 2.29 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 5.35 |
Fan Bolt Circle MM | 135.89 or 135.9 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 2.73 |
Mount Dia. MM | 69 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 168.9 or 168.91 |
Overall Height IN | 2.86 |
Overall Height MM | 72.6 |
Performance Rated | Yes |
Pilot Depth IN | 0.2 |
Pilot Depth MM | 5.08 or 5.1 |
Pilot Dia. IN | .59 to .63 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361369979 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1987-1990 Volvo 760 | All Trims | 6 Cyl 2.8L |
1987-1988 Volvo 780 | All Trims | All Engines |
1989-1990 Volvo 780 | All Trims | 6 Cyl 2.8L |
