Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36992 |

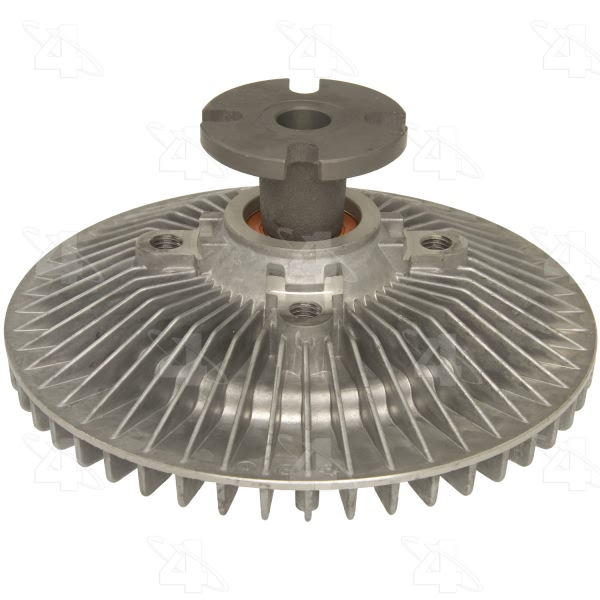

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M10 x 1.5 Hole |
Clutch Maximum Diameter | 7.2 |
Clutch Type | C - Heavy Duty |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.625 or 1.63 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 3.25 |
Fan Bolt Circle MM | 82.55 or 82.6 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 2.43 |
Mount Dia. MM | 62 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 182.88 or 182.9 |
Overall Height IN | 3.34 |
Overall Height MM | 84.8 |
Performance Rated | Yes |
Pilot Depth IN | 1.03 |
Pilot Depth MM | 26.2 |
Pilot Dia. IN | 0.63 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Heavy Duty |
UPC | 096361369924 |
Use Type | Heavy |
Year Make Model | Trim | Engine |
---|---|---|
1995-1996 AM General Hummer | All Trims | 8 Cyl 5.7L |
1992-1993 Buick Commercial Chassis | All Trims | 8 Cyl 5.7L |
1992-1993 Buick Roadmaster | All Trims | 8 Cyl 5.7L |
1990-1992 Cadillac Brougham | All Trims | 8 Cyl 5.7L |
1991-1992 Cadillac Brougham | All Trims | 8 Cyl 5.0L |
1992 Cadillac Commercial Chassis | All Trims | 8 Cyl 5.7L |
1991-1992 Cadillac DeVille | All Trims | All Engines |
1993 Cadillac Fleetwood | Base | All Engines |
1987-1990 Chevrolet Astro | All Trims | 6 Cyl 4.3L |
1991-1995 Chevrolet Astro | All Trims | All Engines |
