Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36986 |

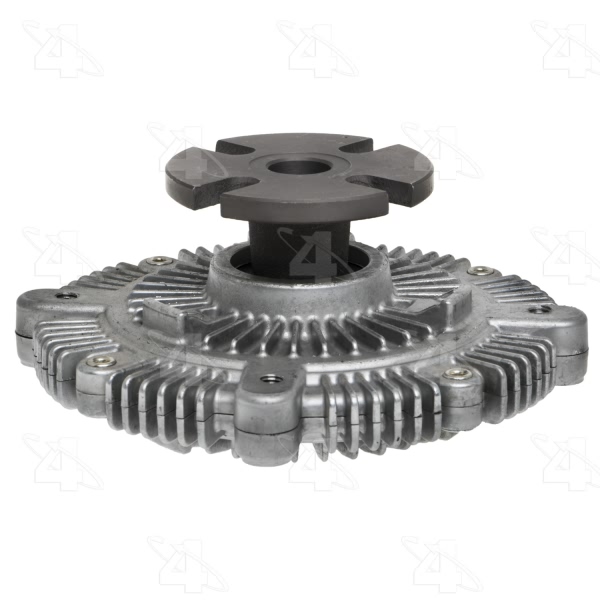

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 5.85 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.15 or 2.16 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 4.8 |
Fan Bolt Circle MM | 121.9 or 121.92 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 2.7 |
Mount Dia. MM | 69 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 148.59 or 148.6 |
Overall Height IN | 2.68 or 2.69 |
Overall Height MM | 68.1 |
Performance Rated | Yes |
Pilot Depth IN | 0.7 |
Pilot Depth MM | 17.78 or 17.8 |
Pilot Dia. IN | 0.63 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361369863 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1989-1994 Isuzu Amigo | All Trims | All Engines |
1988-1989 Isuzu Impulse | All Trims | 4 Cyl 2.3L |
1986-1987 Isuzu Pickup | All Trims | 4 Cyl 2.3L |
1988-1990 Isuzu Pickup | All Trims | All Engines |
1991-1992 Isuzu Pickup | All Trims | 4 Cyl 2.6L |
1991-1995 Isuzu Pickup | All Trims | 4 Cyl 2.3L |
1991-1993 Isuzu Rodeo | All Trims | 4 Cyl 2.6L |
1986-1987 Isuzu Trooper | All Trims | 4 Cyl 2.3L |
1988 Isuzu Trooper | All Trims | All Engines |
1989-1991 Isuzu Trooper | All Trims | 4 Cyl 2.6L |
