Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36964 |

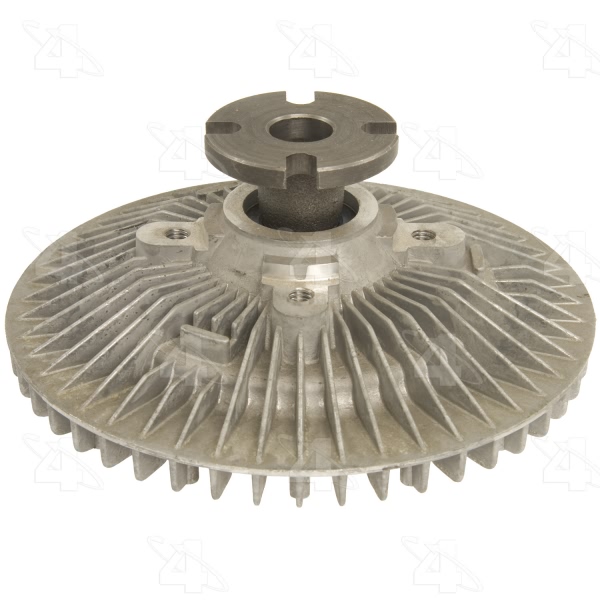

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | 5/16-18 Hole |
Clutch Maximum Diameter | 7.2 |
Clutch Type | B - Non-Thermal & Std Thermal |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.4 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 3 |
Fan Bolt Circle MM | 76.2 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 2.33 |
Mount Dia. MM | 59 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 182.88 or 182.9 |
Overall Height IN | 2.98 |
Overall Height MM | 75.7 |
Performance Rated | Yes |
Pilot Depth IN | 0.75 |
Pilot Depth MM | 19.05 or 19.1 |
Pilot Dia. IN | .63 to .75 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361369641 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1965 Chevrolet Bel Air | All Trims | 6 Cyl 3.8L |
1965 Chevrolet Biscayne | All Trims | 6 Cyl 3.8L |
1955 Chevrolet Corvette | All Trims | 8 Cyl 4.3L |
1956-1958 Chevrolet Corvette | All Trims | All Engines |
1959 Chevrolet Corvette | All Trims | 8 Cyl 4.6L |
1960-1966 Chevrolet Corvette | All Trims | All Engines |
1967 Chevrolet Corvette | All Trims | 8 Cyl 5.3L |
1967-1969 Chevrolet Corvette | All Trims | 8 Cyl 7.0L |
1968 Chevrolet Corvette | All Trims | 8 Cyl 5.4L |
1972-1974 Chevrolet Corvette | All Trims | 8 Cyl 5.7L |
