Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36946 |

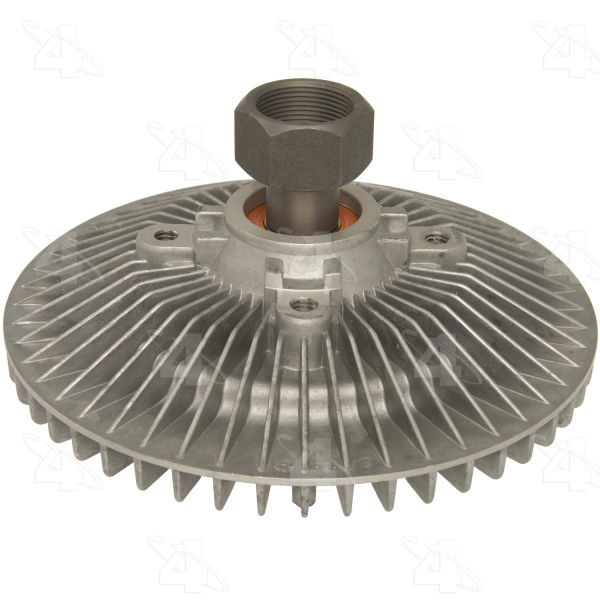

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | 5/16-18 Hole |
Clutch Maximum Diameter | 7.2 |
Clutch Type | C - Heavy Duty |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.75 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 3.25 |
Fan Bolt Circle MM | 82.55 or 82.6 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.44 (36mm) HEX |
Mount Dia. MM | 36 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 182.88 or 182.9 |
Overall Height IN | 3.47 |
Overall Height MM | 88.1 |
Performance Rated | Yes |
Pilot Depth IN | 0.7 |
Pilot Depth MM | 17.78 or 17.8 |
Pilot Dia. IN | M30x1.500 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Heavy Duty |
UPC | 096361369467 |
Use Type | Heavy |
Year Make Model | Trim | Engine |
---|---|---|
1992-1994 Dodge B150 | All Trims | 6 Cyl 3.9L |
1993-1994 Dodge B150 | All Trims | 8 Cyl 5.2L |
1995-1998 Dodge B1500 | All Trims | 6 Cyl 3.9L |
1995-1998 Dodge B1500 | All Trims | 8 Cyl 5.2L |
1998 Dodge B1500 | All Trims | 8 Cyl 5.9L |
1992-1994 Dodge B250 | All Trims | 6 Cyl 3.9L |
1993-1994 Dodge B250 | All Trims | 8 Cyl 5.2L |
1993-1994 Dodge B250 | All Trims | 8 Cyl 5.9L |
1995-1997 Dodge B2500 | All Trims | 6 Cyl 3.9L |
1995-1998 Dodge B2500 | All Trims | 8 Cyl 5.2L |
