Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36785 |

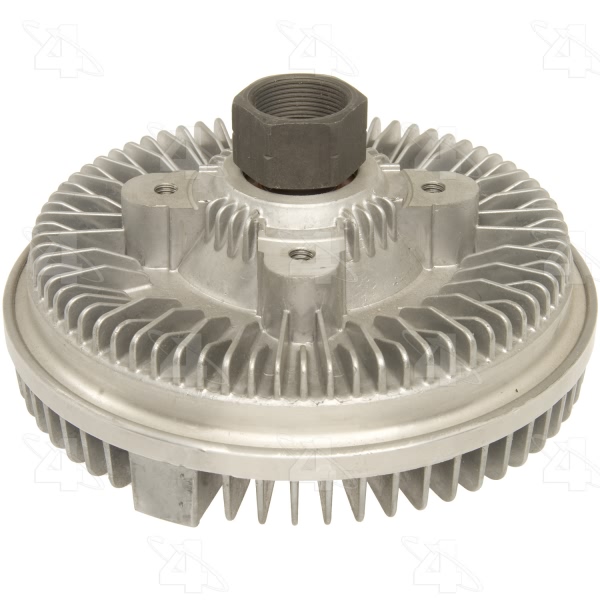

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | 5/16-18 Hole |
Clutch Maximum Diameter | 7.4 |
Clutch Type | D - Severe Duty & Truck Fan Drive |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.2 or 1.21 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 3.25 |
Fan Bolt Circle MM | 82.55 or 82.6 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.44 (36mm) HEX |
Mount Dia. MM | 36 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 187.96 or 188 |
Overall Height IN | 3.72 |
Overall Height MM | 94.5 |
Performance Rated | Yes |
Pilot Depth IN | 0.7 |
Pilot Depth MM | 17.78 or 17.8 |
Pilot Dia. IN | M30 x 1.500 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Heavy Duty |
UPC | 096361367852 |
Use Type | Heavy |
Year Make Model | Trim | Engine |
---|---|---|
2000-2002 Dodge Ram 2500 | All Trims | 6 Cyl 5.9L |
2000-2002 Dodge Ram 3500 | All Trims | 6 Cyl 5.9L |
