Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36784 |

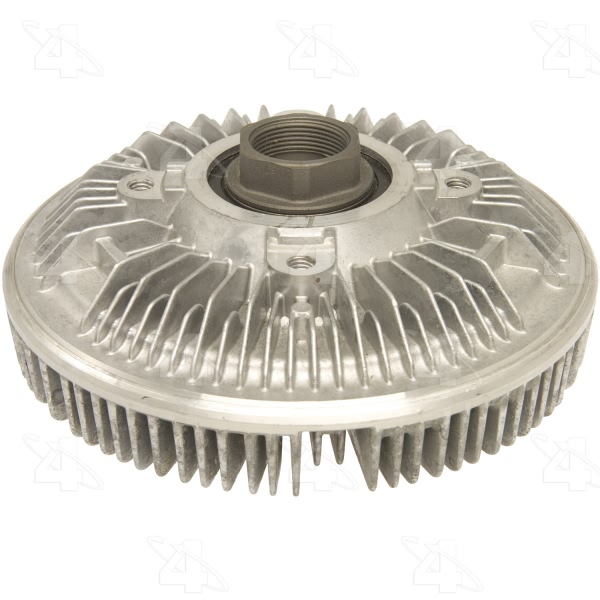

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M8 x 1.25 Hole |
Clutch Maximum Diameter | 7.23 |
Clutch Type | C - Heavy Duty |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 0.59 or 0.6 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 3.81 |
Fan Bolt Circle MM | 96.8 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.44 (36mm) HEX |
Mount Dia. MM | 36 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 183.6 |
Overall Height IN | 2.68 or 2.69 |
Overall Height MM | 68.1 |
Performance Rated | Yes |
Pilot Depth IN | 0.61 |
Pilot Depth MM | 15.5 |
Pilot Dia. IN | M30 x 1.500 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Heavy Duty |
UPC | 096361367845 |
Use Type | Heavy |
Year Make Model | Trim | Engine |
---|---|---|
1996-2001 Ford Explorer | All Trims | 8 Cyl 5.0L |
1997 Mercury Mountaineer | All Trims | All Engines |
1998-2001 Mercury Mountaineer | All Trims | 8 Cyl 5.0L |
