Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36780 |

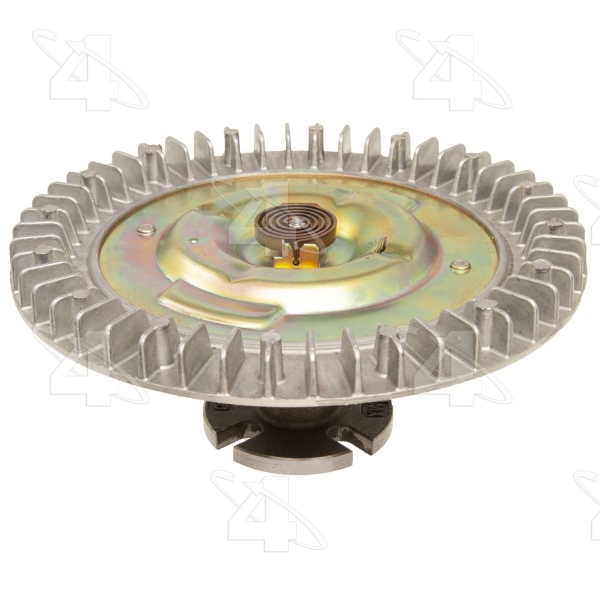

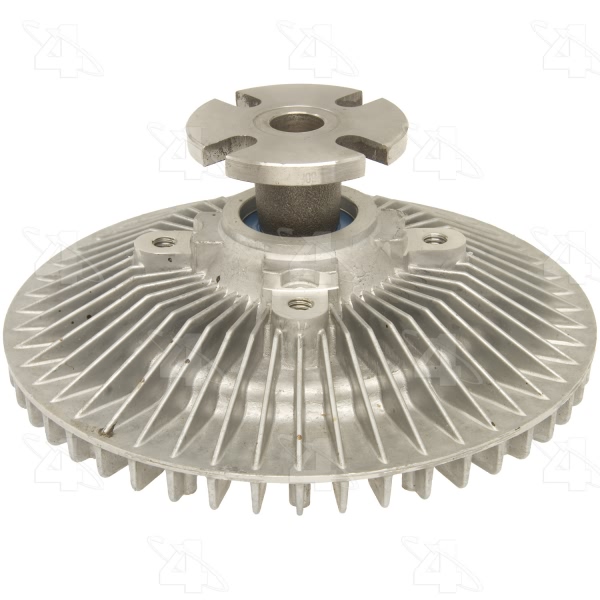

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | 5/16-18 Hole |
Clutch Maximum Diameter | 7.2 |
Clutch Type | B - Non-Thermal & Std Thermal |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.62 or 1.63 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 3.25 |
Fan Bolt Circle MM | 82.55 or 82.6 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 2.59 |
Mount Dia. MM | 66 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 182.9 |
Overall Height IN | 3.19 |
Overall Height MM | 81 |
Performance Rated | Yes |
Pilot Depth IN | 0.63 |
Pilot Depth MM | 16 |
Pilot Dia. IN | 0.75 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361367807 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1969-1971 Chevrolet Corvette | All Trims | 8 Cyl 5.7L |
1970-1974 Chevrolet Corvette | All Trims | 8 Cyl 7.4L |
