Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36777 |

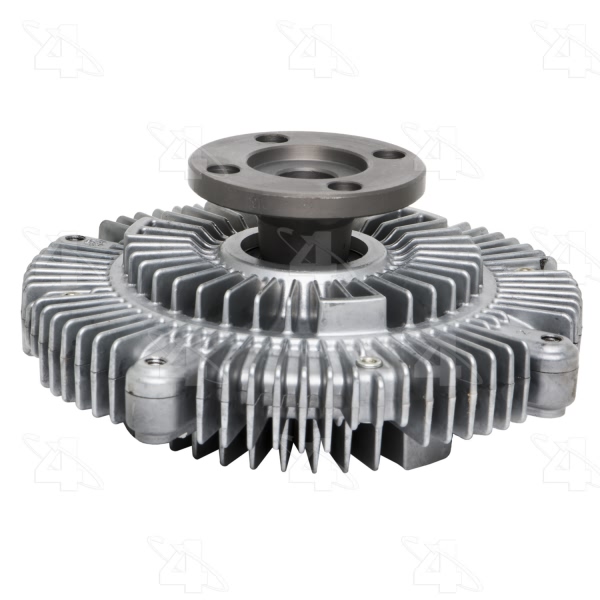

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.65 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.25 or 2.251 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 6.03 |
Fan Bolt Circle MM | 153 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 2.6 |
Mount Dia. MM | 66 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 168.9 |
Overall Height IN | 2.94 |
Overall Height MM | 74.7 |
Performance Rated | Yes |
Pilot Depth IN | 0.88 |
Pilot Depth MM | 22.4 |
Pilot Dia. IN | 0.63 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361367777 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1999-2002 Chevrolet Tracker | All Trims | 4 Cyl 2.0L |
2001-2002 Chevrolet Tracker | All Trims | 6 Cyl 2.5L |
2003-2004 Chevrolet Tracker | All Trims | All Engines |
1999-2005 Suzuki Grand Vitara | All Trims | All Engines |
1996-1998 Suzuki Sidekick | All Trims | 4 Cyl 1.8L |
1999-2002 Suzuki Vitara | All Trims | 4 Cyl 2.0L |
2003-2004 Suzuki Vitara | All Trims | All Engines |
2002-2003 Suzuki XL-7 | All Trims | All Engines |
