Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36772 |

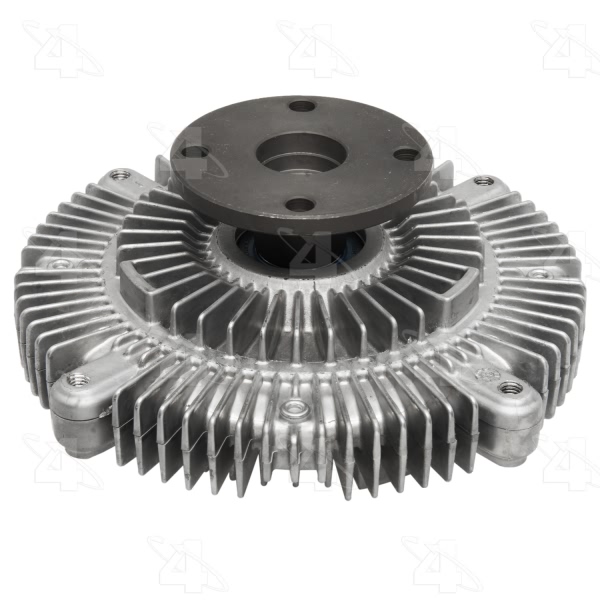

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | Re-use 4 from O.E. |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.65 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.28 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 5.27 or 6.03 |
Fan Bolt Circle MM | 133.9 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 2.75 |
Mount Dia. MM | 70 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 168.9 or 168.91 |
Overall Height IN | 2.95 |
Overall Height MM | 75.4 |
Performance Rated | Yes |
Pilot Depth IN | 0.23 |
Pilot Depth MM | 5.8 |
Pilot Dia. IN | .88 to .94 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361367722 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1997-2002 Mitsubishi Montero Sport | All Trims | 6 Cyl 3.0L |
2002 Mitsubishi Montero Sport | All Trims | 6 Cyl 3.5L |
2003-2004 Mitsubishi Montero Sport | All Trims | All Engines |
