Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36769 |

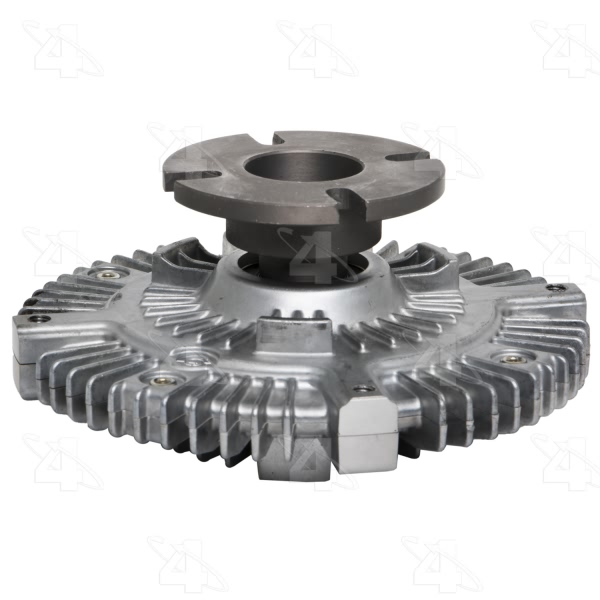

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.2 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.357 or 2.36 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 5.65 or 5.66 |
Fan Bolt Circle MM | 143.5 or 143.51 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 3 |
Mount Dia. MM | 76 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 157.5 |
Overall Height IN | 2.94 |
Overall Height MM | 74.6 |
Performance Rated | Yes |
Pilot Depth IN | 0.5 |
Pilot Depth MM | 12.7 |
Pilot Dia. IN | .63 to 1.26 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361367692 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1993-1996 Infiniti Q45 | All Trims | All Engines |
1997-2000 Infiniti QX4 | All Trims | All Engines |
1990-1996 Nissan 300ZX | All Trims | All Engines |
1990-1994 Nissan D21 | All Trims | 6 Cyl 3.0L |
1999-2004 Nissan Frontier | All Trims | 6 Cyl 3.3L |
1990-2000 Nissan Pathfinder | All Trims | All Engines |
1995 Nissan Pickup | All Trims | 6 Cyl 3.0L |
2000-2004 Nissan Xterra | All Trims | 6 Cyl 3.3L |
