Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36766 |

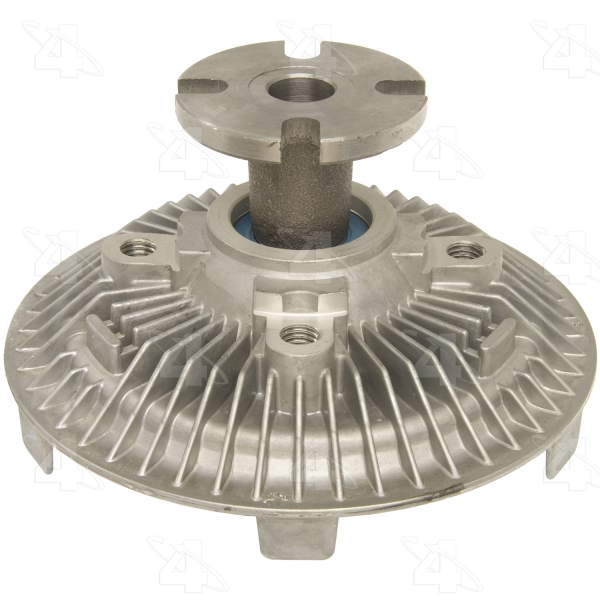

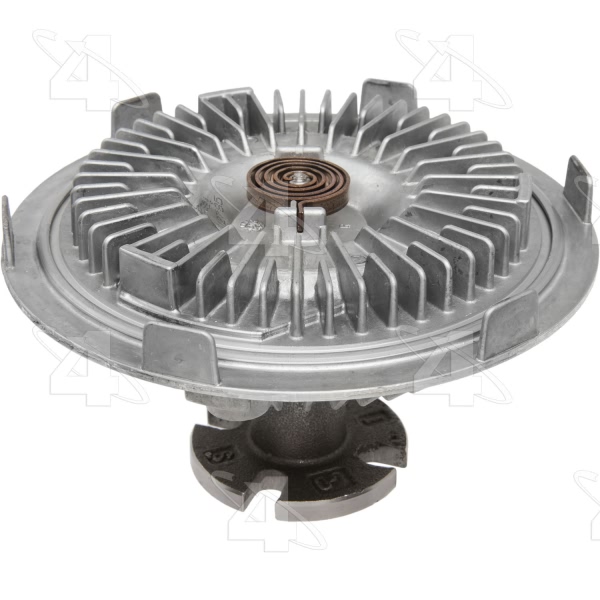

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M10 x 1.5 Hole |
Clutch Maximum Diameter | 5.99 |
Clutch Type | B - Non-Thermal & Std Thermal |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.75 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 3.25 |
Fan Bolt Circle MM | 82.55 or 82.6 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 2.43 |
Mount Dia. MM | 62 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 152.1 |
Overall Height IN | 3.47 |
Overall Height MM | 88.1 |
Performance Rated | Yes |
Pilot Depth IN | 1.03 |
Pilot Depth MM | 26.2 |
Pilot Dia. IN | 0.63 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361367661 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1994-1996 Chevrolet S10 | All Trims | 4 Cyl 2.2L |
1994-1996 GMC Sonoma | All Trims | 4 Cyl 2.2L |
1996 Isuzu Hombre | All Trims | All Engines |
