Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36751 |

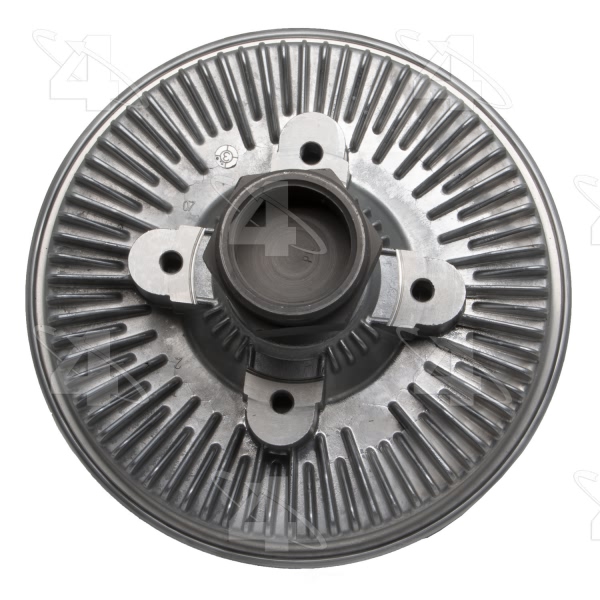

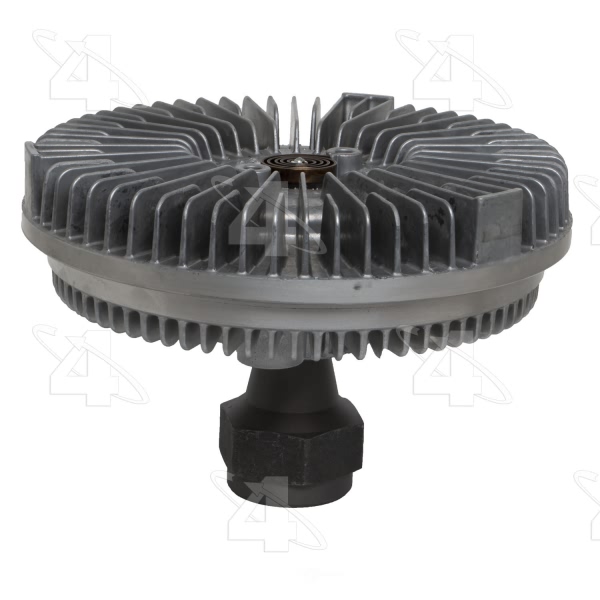

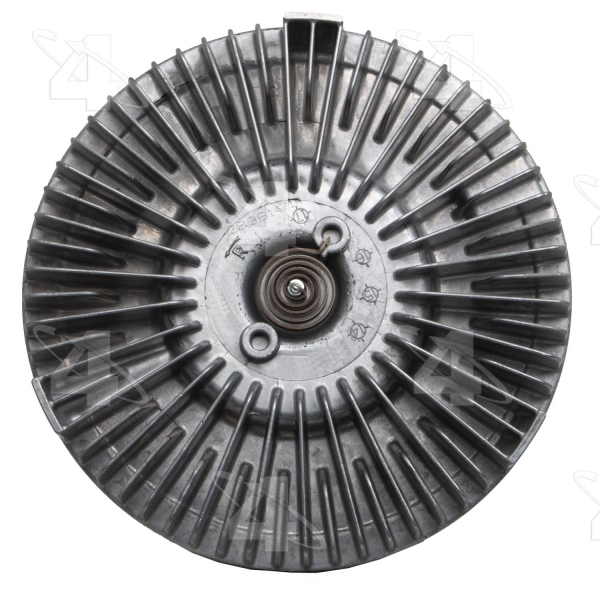

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | 5/16-18 Hole |
Clutch Maximum Diameter | 7.4 |
Clutch Type | D - Severe Duty & Truck Fan Drive |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.42 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 3.25 |
Fan Bolt Circle MM | 82.55 or 82.6 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.86 HEX |
Mount Dia. MM | 47 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 187.96 or 188 |
Overall Height IN | 4.94 |
Overall Height MM | 125.4 |
Performance Rated | Yes |
Pilot Depth IN | 0.78 or 0.79 |
Pilot Depth MM | 20.1 |
Pilot Dia. IN | M36x2.000 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Severe Duty |
UPC | 096361367517 |
Use Type | Severe |
Year Make Model | Trim | Engine |
---|---|---|
2003 Ford E-350 Club Wagon | All Trims | 10 Cyl 6.8L |
2005 Ford E-350 Club Wagon | All Trims | 10 Cyl 6.8L |
1997-1998 Ford E-350 Econoline | All Trims | 10 Cyl 6.8L |
1997-2002 Ford E-350 Econoline Club Wagon | All Trims | 10 Cyl 6.8L |
1999-2014 Ford E-350 Super Duty | All Trims | 10 Cyl 6.8L |
2000-2005 Ford Excursion | All Trims | 10 Cyl 6.8L |
1999-2000 Ford F-150 | Lightning | 8 Cyl 5.4L |
1999-2007 Ford F-250 Super Duty | All Trims | 10 Cyl 6.8L |
1999-2007 Ford F-350 Super Duty | All Trims | 10 Cyl 6.8L |
