Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36750 |

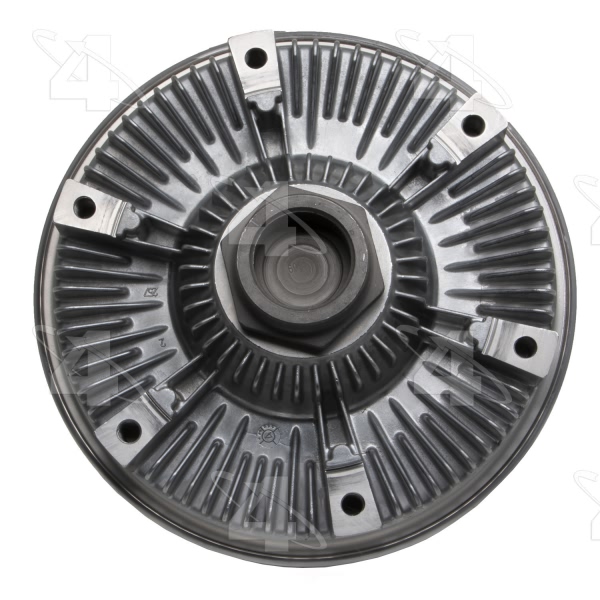

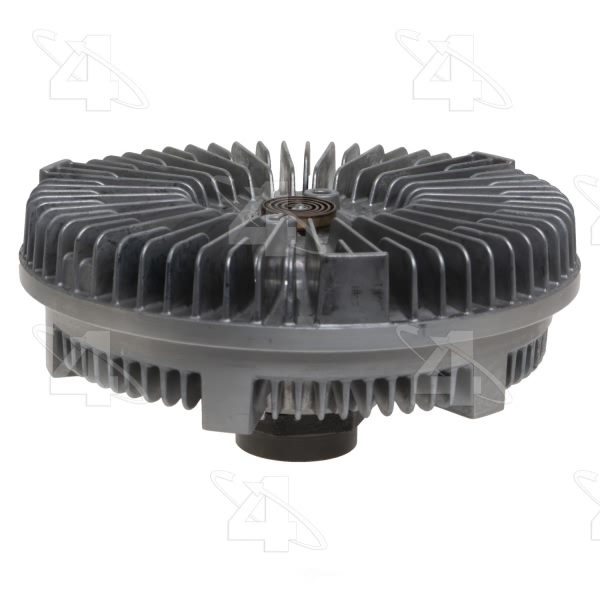

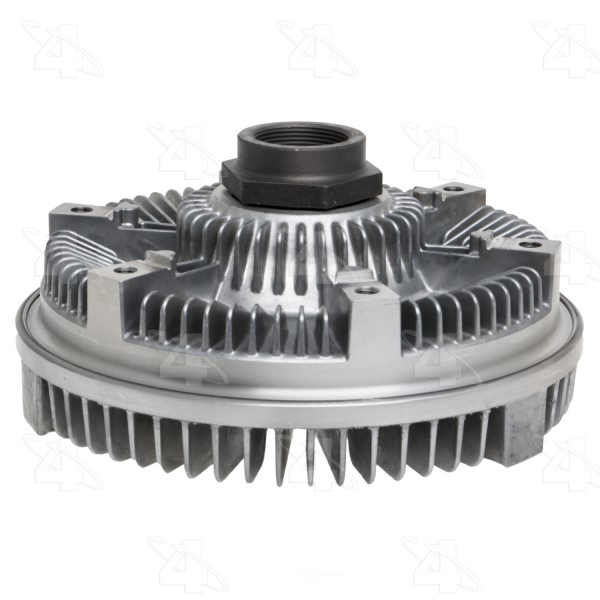

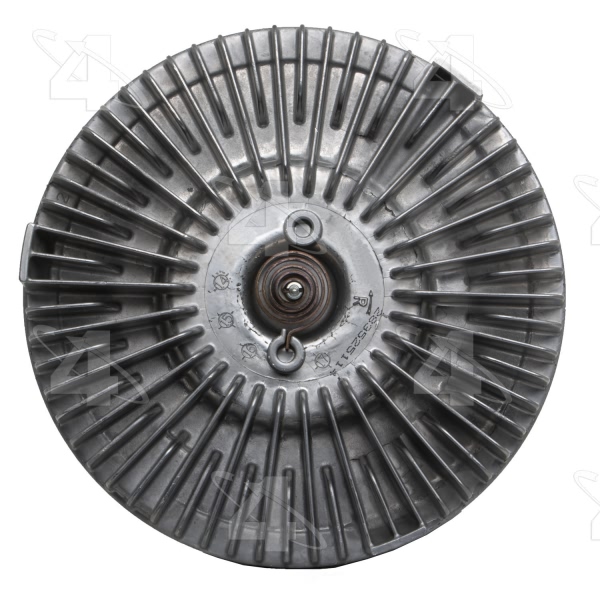

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 6 |
Bolt Quantity | 6 |
Bolt Thread | 5/16-18 Hole |
Clutch Maximum Diameter | 7.4 |
Clutch Type | D - Severe Duty & Truck Fan Drive |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.22 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 6 |
Fan Bolt Circle MM | 152.4 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.88 (48mm) Hex |
Mount Dia. MM | 48 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 6 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 188 |
Overall Height IN | 3.55 |
Overall Height MM | 90.1 |
Performance Rated | Yes |
Pilot Depth IN | 0.67 |
Pilot Depth MM | 17 |
Pilot Dia. IN | 1 1/4-18 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Severe Duty |
UPC | 096361367500 |
Use Type | Severe |
Year Make Model | Trim | Engine |
---|---|---|
1995-1997 Ford E-350 Econoline | All Trims | 8 Cyl 7.3L |
1995-1997 Ford E-350 Econoline Club Wagon | All Trims | 8 Cyl 7.3L |
1994-1996 Ford F-250 | All Trims | 8 Cyl 7.3L |
1997 Ford F-250 HD | All Trims | 8 Cyl 7.3L |
1994-1997 Ford F-350 | All Trims | 8 Cyl 7.3L |
