Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36747 |

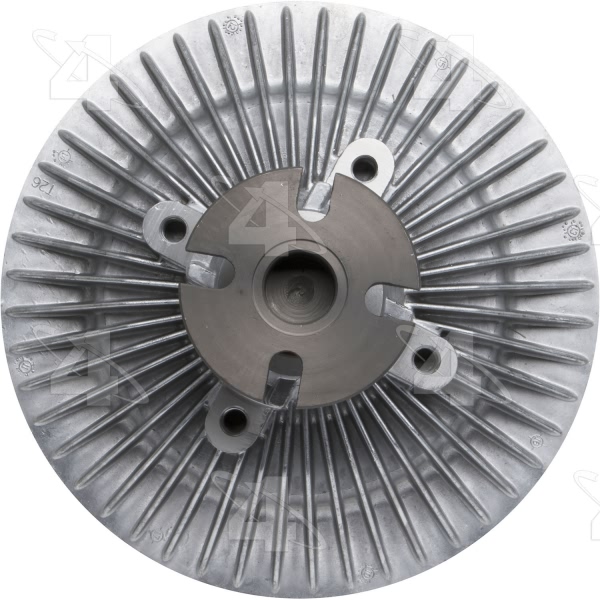

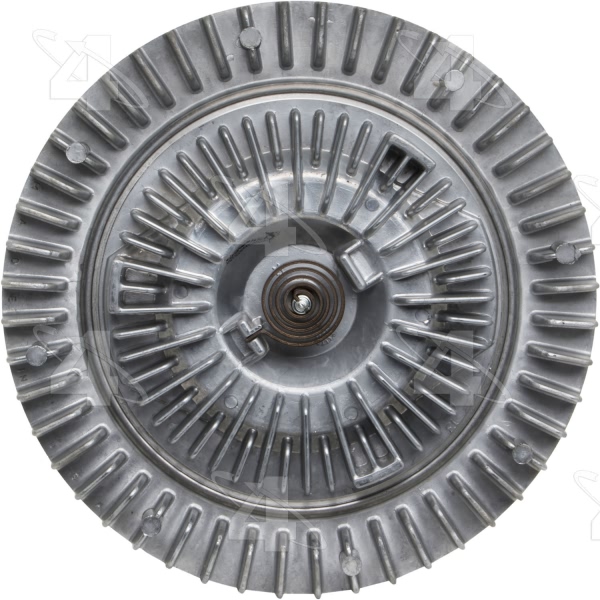

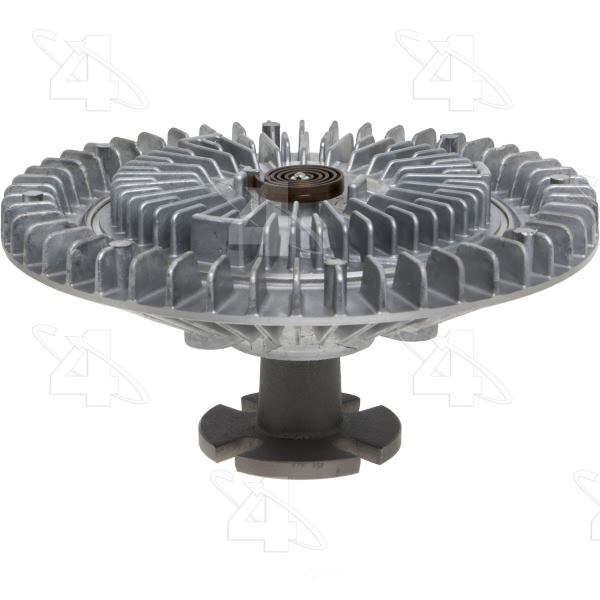

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | 5/16-18 Hole |
Clutch Maximum Diameter | 7.2 |
Clutch Type | C - Heavy Duty |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.8 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 3.25 |
Fan Bolt Circle MM | 82.55 or 82.6 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 2.56 |
Mount Dia. MM | 65 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 182.88 or 182.9 |
Overall Height IN | 3.51 or 3.52 |
Overall Height MM | 89.2 |
Performance Rated | Yes |
Pilot Depth IN | 0.63 |
Pilot Depth MM | 16 |
Pilot Dia. IN | 0.75 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Heavy Duty |
UPC | 096361367470 |
Use Type | Heavy |
Year Make Model | Trim | Engine |
---|---|---|
1974 Chevrolet Corvette | All Trims | 8 Cyl 5.7L |
1975-1979 Chevrolet Corvette | All Trims | All Engines |
1980 Chevrolet Corvette | All Trims | 8 Cyl 5.7L |
