Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36740 |

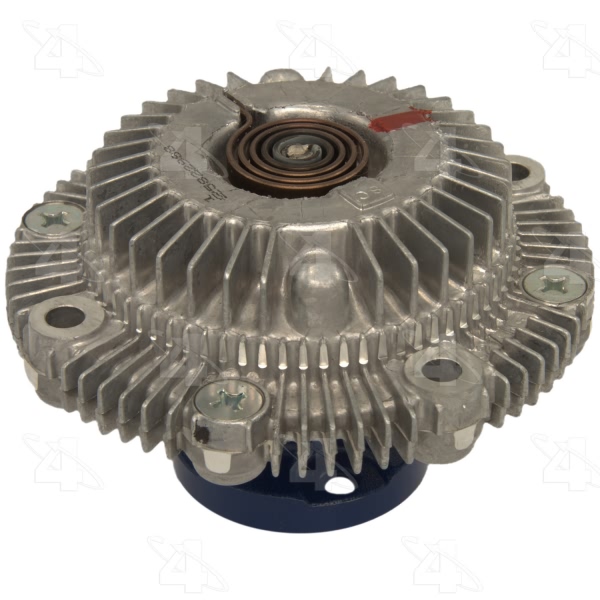

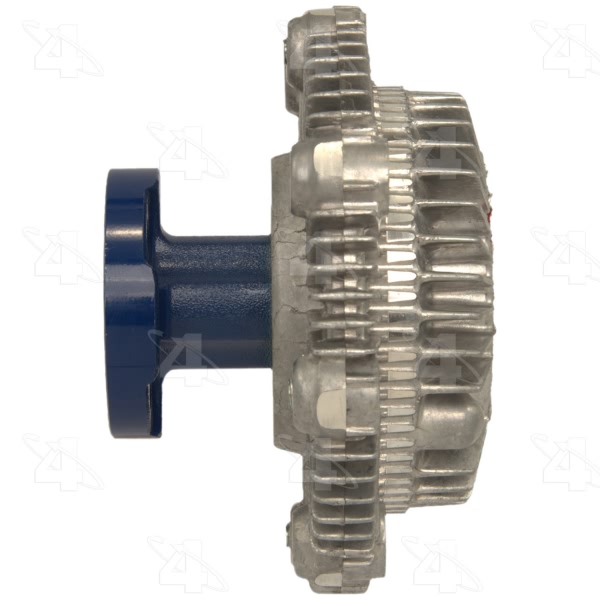

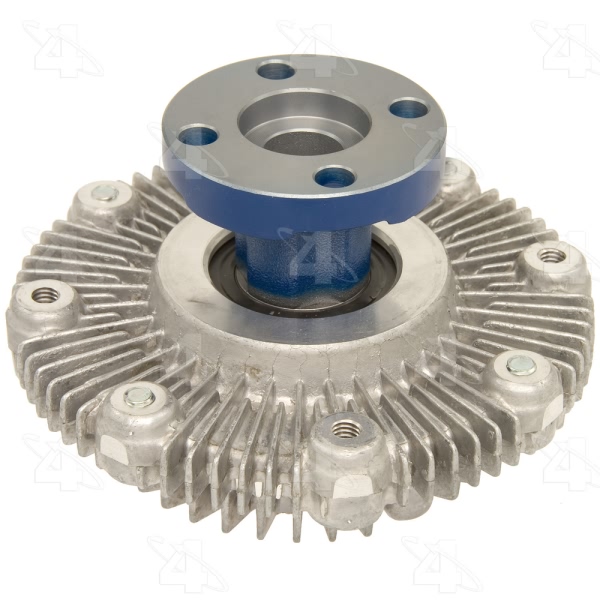

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 4.45 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.02 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 3.86 |
Fan Bolt Circle MM | 98 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 2.06 |
Mount Dia. MM | 52 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 113 |
Overall Height IN | 2.87 or 2.88 |
Overall Height MM | 72.9 |
Performance Rated | Yes |
Pilot Depth IN | 0.24 |
Pilot Depth MM | 6.1 |
Pilot Dia. IN | 0.94 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361367401 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1989-1991 Chevrolet Tracker | All Trims | All Engines |
1998 Chevrolet Tracker | All Trims | All Engines |
1999-2002 Chevrolet Tracker | All Trims | 4 Cyl 1.6L |
1989-1991 GMC Tracker | All Trims | All Engines |
1989-1997 Geo Tracker | All Trims | All Engines |
1992-1995 Suzuki Sidekick | All Trims | All Engines |
1996-1998 Suzuki Sidekick | All Trims | 4 Cyl 1.6L |
1996-1998 Suzuki X-90 | All Trims | All Engines |
