Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36714 |

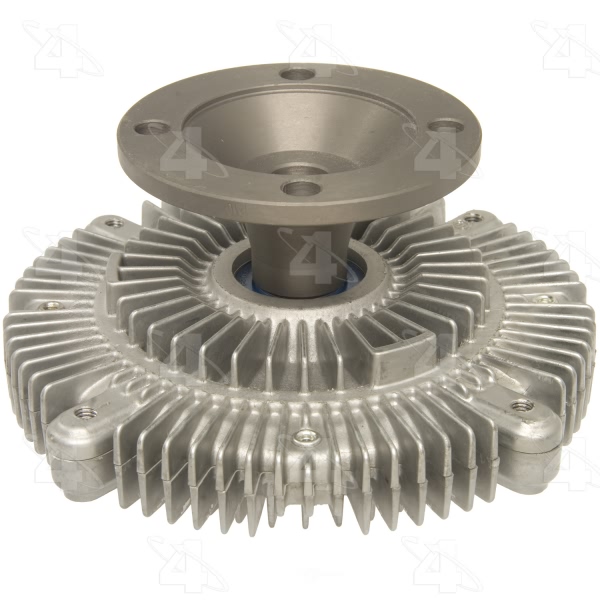

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.65 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.86 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 5.83 |
Fan Bolt Circle MM | 148.1 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 3.63 |
Mount Dia. MM | 92 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 168.9 |
Overall Height IN | 3.53 or 3.546875 |
Overall Height MM | 89.9 |
Performance Rated | Yes |
Pilot Depth IN | 0.95 |
Pilot Depth MM | 24.1 or 24.13 |
Pilot Dia. IN | .63 to 2.32 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361367142 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1993-1998 Lexus GS300 | All Trims | All Engines |
1992-2000 Lexus SC300 | All Trims | All Engines |
1993-1998 Toyota Supra | All Trims | All Engines |
