Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36713 |

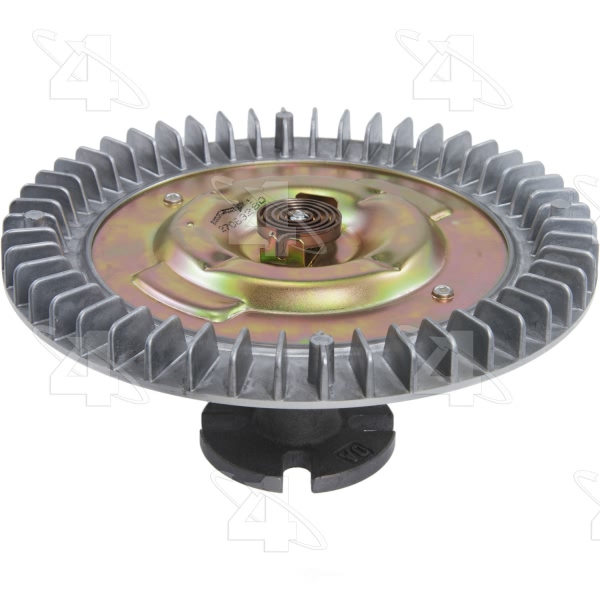

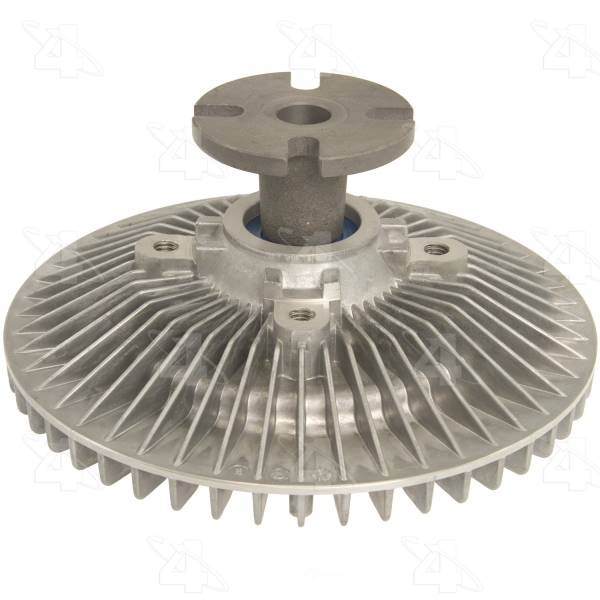

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | 5/16-18 Hole |
Clutch Maximum Diameter | 7.2 |
Clutch Type | B - Non-Thermal & Std Thermal |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.75 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 3.25 |
Fan Bolt Circle MM | 82.55 or 82.6 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 2.59 |
Mount Dia. MM | 66 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 182.88 or 182.9 |
Overall Height IN | 3.3 |
Overall Height MM | 83.8 |
Performance Rated | Yes |
Pilot Depth IN | 1.03 |
Pilot Depth MM | 26.2 |
Pilot Dia. IN | 0.63 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361367135 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1965-1967 Cadillac Commercial Chassis | All Trims | All Engines |
1987 Cadillac DeVille | All Trims | All Engines |
1965-1967 Cadillac Fleetwood | All Trims | All Engines |
1985-1986 Chevrolet Astro | All Trims | 6 Cyl 4.3L |
1975-1984 Chevrolet G10 | All Trims | 6 Cyl 4.1L |
1981-1986 Chevrolet G10 | All Trims | 8 Cyl 5.0L |
1981-1986 Chevrolet G10 | All Trims | 8 Cyl 5.7L |
1985-1986 Chevrolet G10 | All Trims | 6 Cyl 4.3L |
1967-1974 Chevrolet G10 Van | All Trims | 6 Cyl 4.1L |
1975-1976 Chevrolet G20 | All Trims | 6 Cyl 4.1L |
