Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36711 |

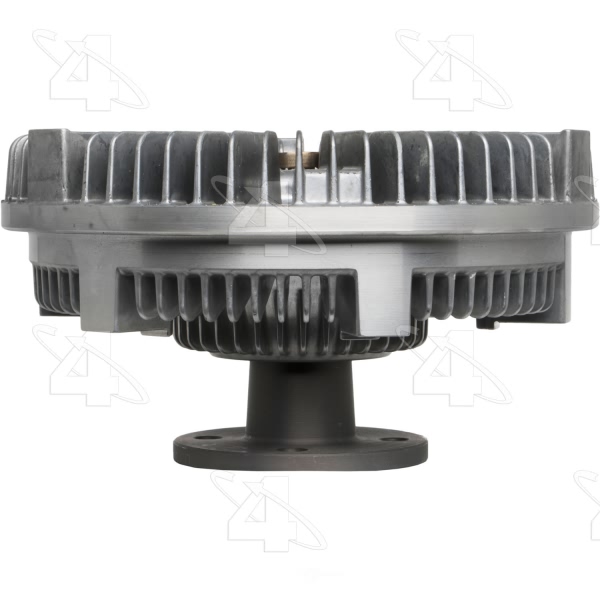

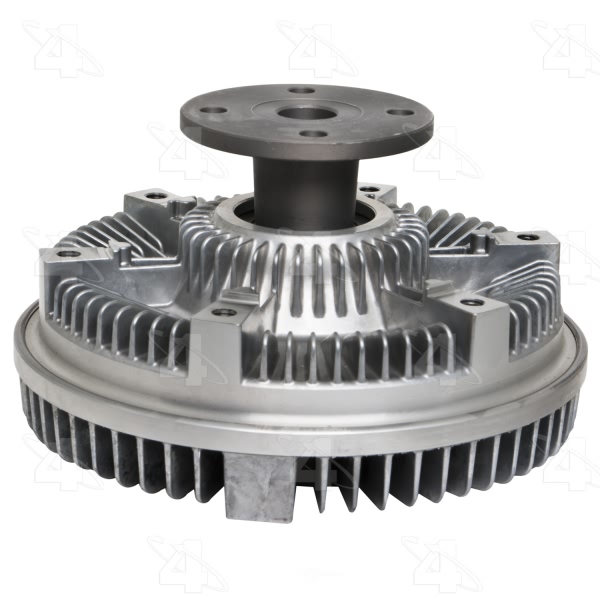

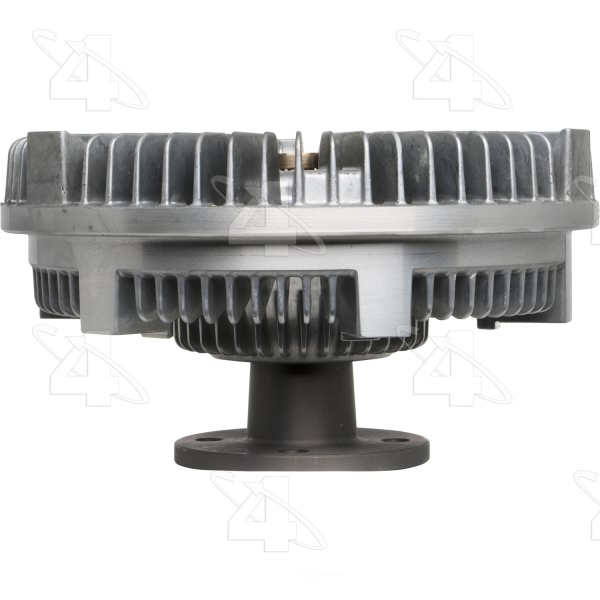

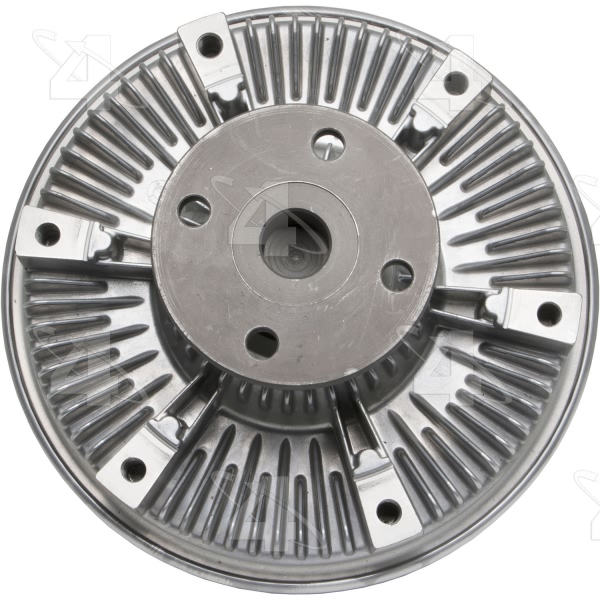

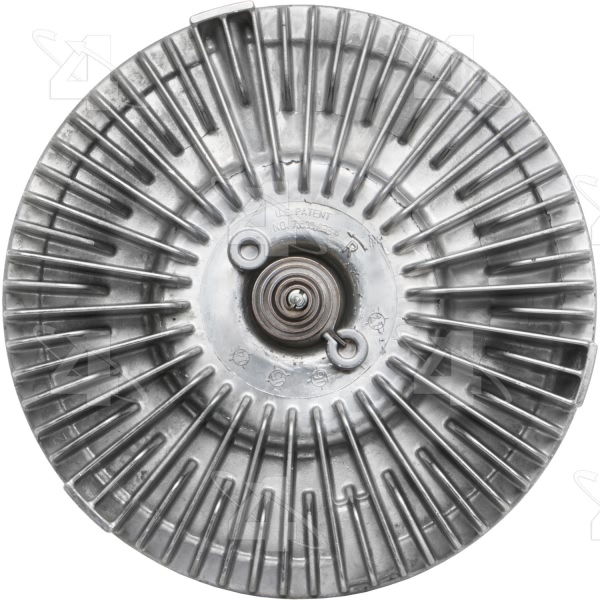

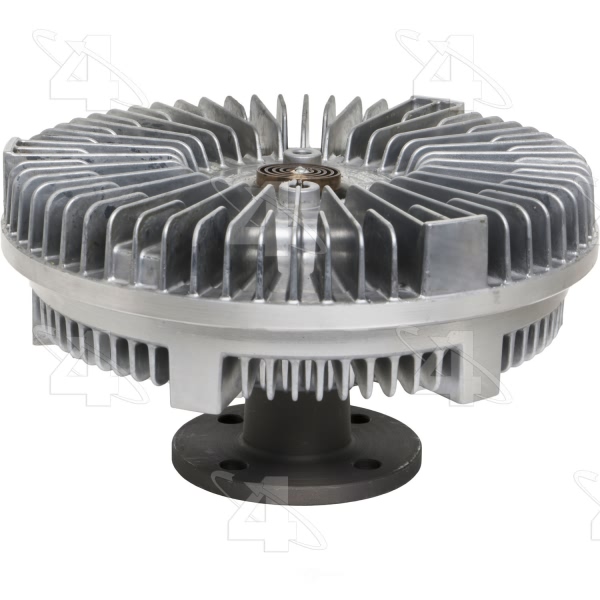

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 6 |
Bolt Quantity | 6 |
Bolt Thread | M8 x 1.25 Hole |
Clutch Maximum Diameter | 7.4 |
Clutch Type | D - Severe Duty & Truck Fan Drive |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.76 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 6 |
Fan Bolt Circle MM | 152.4 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 3.22 |
Mount Dia. MM | 82 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 6 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 187.96 or 188 |
Overall Height IN | 4.08 |
Overall Height MM | 103.6 |
Performance Rated | Yes |
Pilot Depth IN | 0.65 or 0.66 |
Pilot Depth MM | 16.5 or 16.51 |
Pilot Dia. IN | 0.75 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Severe Duty |
UPC | 096361367111 |
Use Type | Severe |
Year Make Model | Trim | Engine |
---|---|---|
1994 Chevrolet Blazer | All Trims | 8 Cyl 6.5L |
1994-1996 Chevrolet C1500 | All Trims | 8 Cyl 6.5L |
1994-1996 Chevrolet C1500 Suburban | All Trims | 8 Cyl 6.5L |
1992-1996 Chevrolet C2500 | All Trims | 8 Cyl 6.5L |
1994-1996 Chevrolet C2500 Suburban | All Trims | 8 Cyl 6.5L |
1992-1996 Chevrolet C3500 | All Trims | 8 Cyl 6.5L |
1996 Chevrolet Express 2500 | All Trims | 8 Cyl 6.5L |
1996 Chevrolet Express 3500 | All Trims | 8 Cyl 6.5L |
1996 Chevrolet G30 | All Trims | 8 Cyl 6.5L |
1994-1996 Chevrolet K1500 | All Trims | 8 Cyl 6.5L |
