Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36709 |

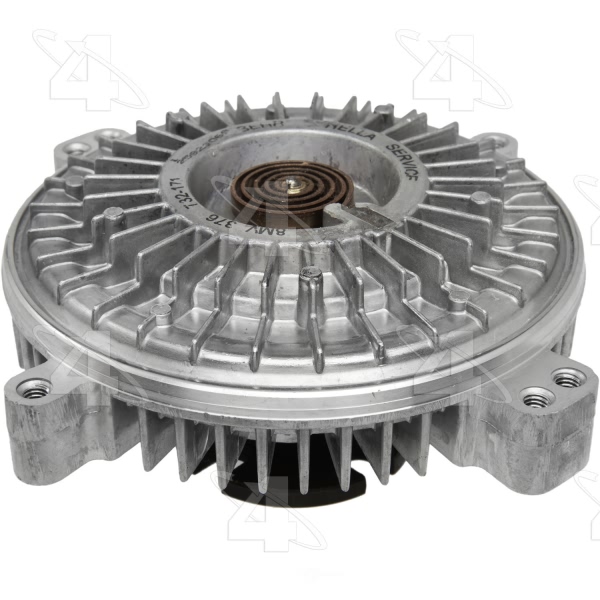

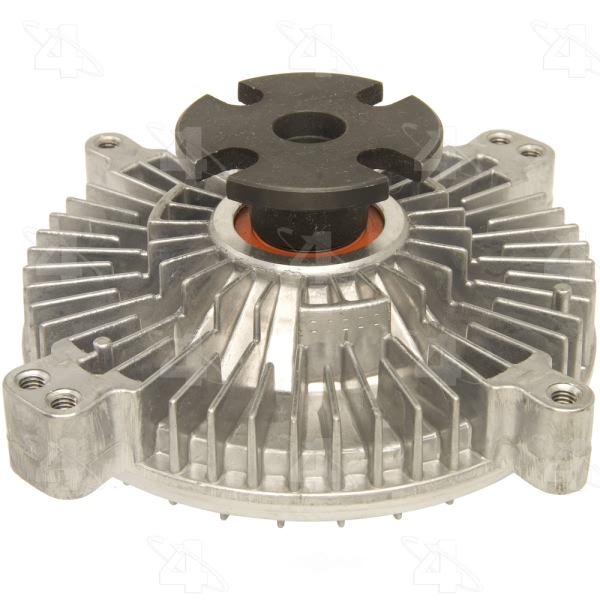

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.34 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.07 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 5.98 |
Fan Bolt Circle MM | 151.9 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 2.31 |
Mount Dia. MM | 59 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 161 |
Overall Height IN | 2.8 to 3.57 |
Overall Height MM | 71.1 or 71.12 |
Performance Rated | Yes |
Pilot Depth IN | 0.26 |
Pilot Depth MM | 6.5 |
Pilot Dia. IN | 0.63 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361367098 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1984-1985 Mercedes-Benz 380SE | All Trims | All Engines |
1982-1983 Mercedes-Benz 380SEC | All Trims | All Engines |
1981-1983 Mercedes-Benz 380SEL | All Trims | All Engines |
1981-1985 Mercedes-Benz 380SL | All Trims | All Engines |
1986-1991 Mercedes-Benz 420SEL | All Trims | All Engines |
1984-1985 Mercedes-Benz 500SEC | All Trims | All Engines |
1984-1985 Mercedes-Benz 500SEL | All Trims | All Engines |
1986-1991 Mercedes-Benz 560SEC | All Trims | All Engines |
1986-1991 Mercedes-Benz 560SEL | All Trims | All Engines |
1986-1989 Mercedes-Benz 560SL | All Trims | All Engines |
