Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36706 |

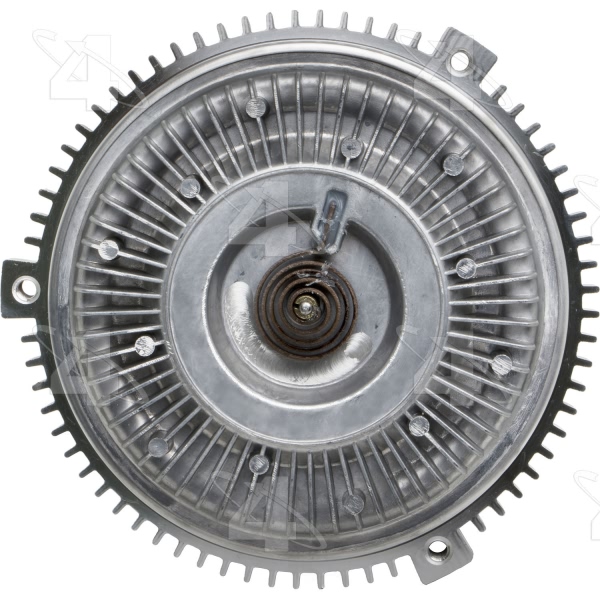

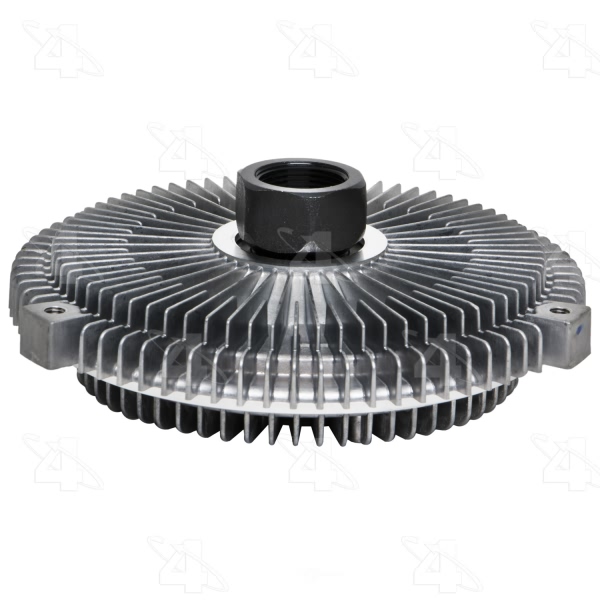

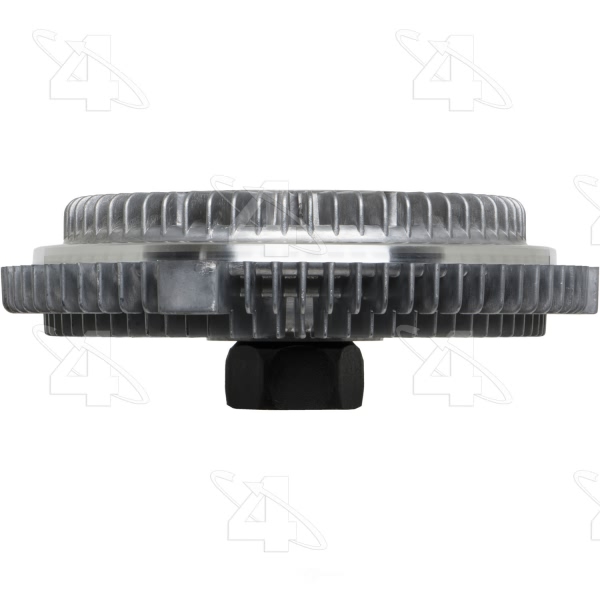

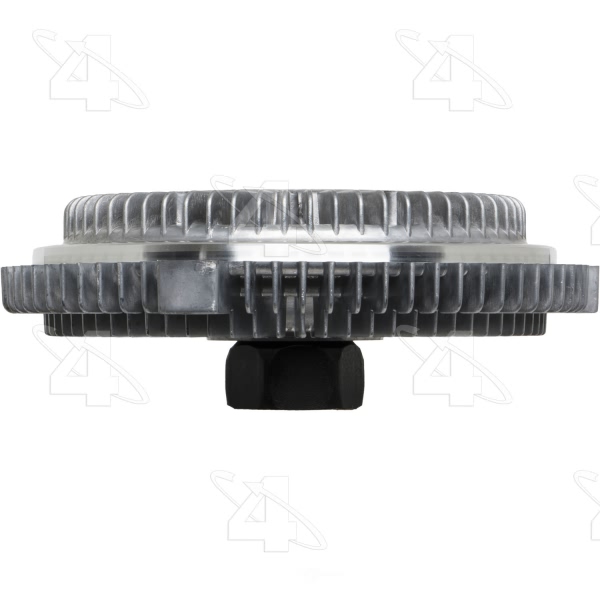

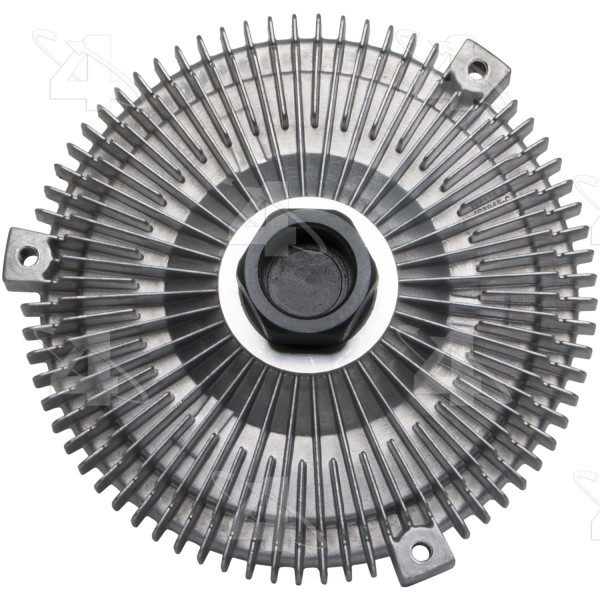

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 3 |
Bolt Quantity | 3 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 6.3 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.44 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 5.79 |
Fan Bolt Circle MM | 147.1 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.25 HEX |
Mount Dia. MM | 32 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 3 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 160 |
Overall Height IN | 1.95 |
Overall Height MM | 49.6 |
Performance Rated | Yes |
Pilot Depth IN | 0.52 |
Pilot Depth MM | 13.1 |
Pilot Dia. IN | M24x1.500 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361367067 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1993-1995 BMW 320i | All Trims | All Engines |
2001-2005 BMW 320i | All Trims | All Engines |
2000 BMW 323Ci | All Trims | All Engines |
1998-2000 BMW 323i | All Trims | All Engines |
1998-1999 BMW 323is | All Trims | All Engines |
1999-2000 BMW 323ti | All Trims | All Engines |
2001-2006 BMW 325Ci | All Trims | All Engines |
1992-1995 BMW 325i | All Trims | All Engines |
2001-2006 BMW 325i | All Trims | All Engines |
1992-1995 BMW 325is | All Trims | All Engines |
