Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36704 |

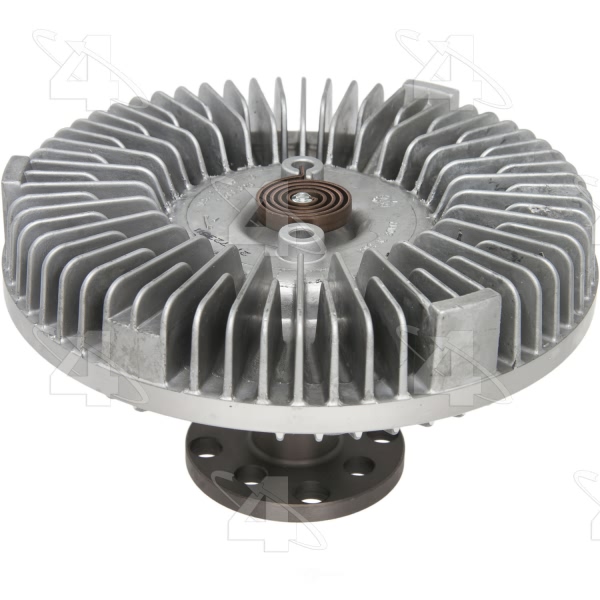

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | 5/16-18 Hole |
Clutch Maximum Diameter | 6.45 |
Clutch Type | D - Severe Duty & Truck Fan Drive |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.625 or 1.63 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 3.25 |
Fan Bolt Circle MM | 82.55 or 82.6 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 2.58 |
Mount Dia. MM | 66 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 163.8 |
Overall Height IN | 3.66 |
Overall Height MM | 92.9 |
Performance Rated | Yes |
Pilot Depth IN | 0.63 |
Pilot Depth MM | 16 |
Pilot Dia. IN | 0.63 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Severe Duty |
UPC | 096361367043 |
Use Type | Severe |
Year Make Model | Trim | Engine |
---|---|---|
1977 Buick Century | All Trims | 8 Cyl 6.6L |
1994-1996 Buick Commercial Chassis | All Trims | 8 Cyl 5.7L |
1977-1979 Buick Electra | All Trims | 8 Cyl 6.6L |
1977-1983 Buick Electra | All Trims | 8 Cyl 5.7L |
1981-1984 Buick Electra | All Trims | 8 Cyl 5.0L |
1985 Buick Electra | All Trims | 8 Cyl 5.7L |
1977-1979 Buick Estate Wagon | All Trims | 8 Cyl 6.6L |
1977-1978 Buick LeSabre | All Trims | 8 Cyl 6.6L |
1980 Buick LeSabre | All Trims | 8 Cyl 5.7L |
1985 Buick LeSabre | All Trims | 8 Cyl 5.7L |
