Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 83166 |

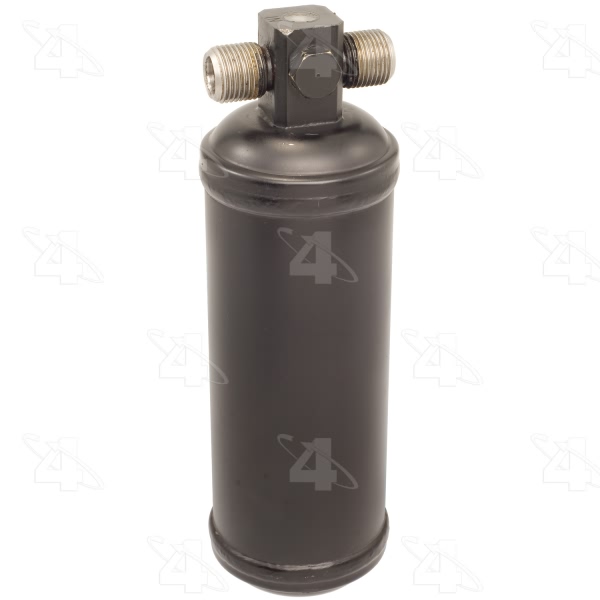

Part Description | Steel Filter Drier |
Body Diameter | 2.500 |
Body Length | 6.750 |
Connector B Type | Male Insert O-Ring |
Connector Type | Male Insert O-Ring |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 63.500 |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Male |
Inlet Dia. Fraction | 11/16 |
Inlet Filter Fitting Thread Diameter | 0.709 |
Inlet Filter Fitting Type | Male |
Inlet Fitting Diameter | 0.709 |
Inlet Fitting Type | Male Insert O-Ring |
Length MM | 171.450 |
Material | Steel |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | Hardware not included |
O-Ring A Number/Desc | [24609] / Green Round O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | [24605] / Green O-Ring |
O-Ring B Quantity | 1 |
Outlet Fitting Type | Male Insert O-Ring |
Outlet Fraction | 11/16 |
Outlet IN | 0.709 |
Overall Depth IN | 6.750 |
Service Port | w/o Service Port |
Sight Glass | No |
Style | Steel Filter Drier |
Switch Port | w/ Switch Port |
UPC | 096361831667 |
Year Make Model | Trim | Engine |
---|---|---|
1994-1997 Kia Sephia | All Trims | All Engines |
1995-2000 Kia Sportage | All Trims | All Engines |
