Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76097 |

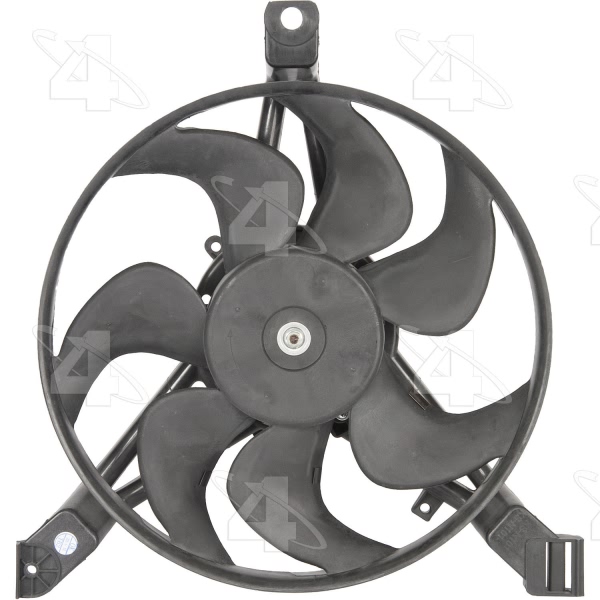

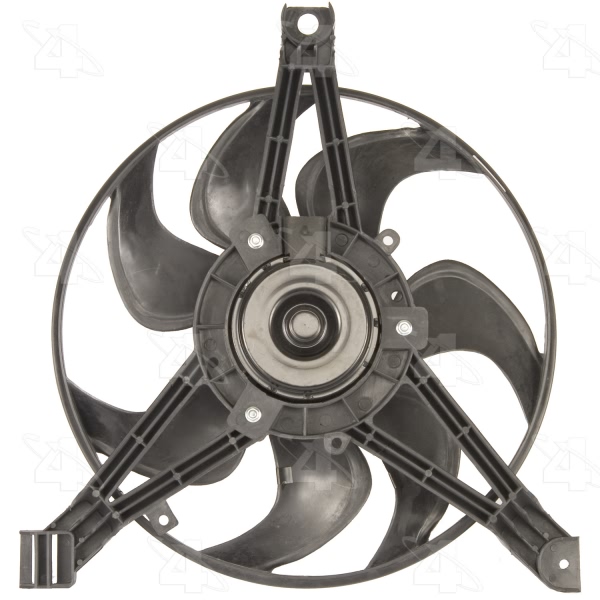

Part Description | Right A C Condenser Fan Assembly |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |
Connector Gender | Female |
Connector qty | 1 |
Connector Shape | Rectangle |
Connector Type | 2 Terminal connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 7 |
Fan 2 Blade Quantity | 7 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 1 |
Height IN | 16.750 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Mount Location | Condenser Fan |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 22.000 |
Package Depth MM | 558.800 |
Package Height IN | 6.250 |
Package Height MM | 158.750 |
Package Length IN | 19.750 |
Package Length MM | 501.650 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | NA |
Style | Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 2 |
UPC | 096361760974 |
Voltage | 12 |
Width IN | 17.250 |
Year Make Model | Trim | Engine |
---|---|---|
1998-1999 Chevrolet Lumina | All Trims | 6 Cyl 3.1L |
1998-1999 Chevrolet Lumina | All Trims | 6 Cyl 3.8L |
