Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 75509 |

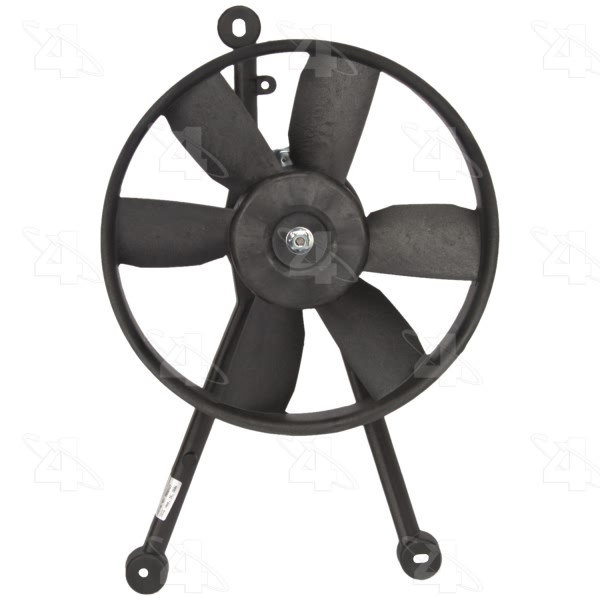

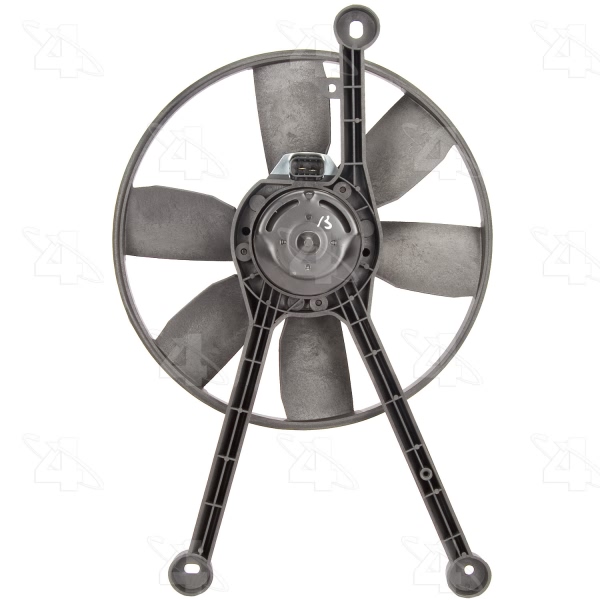

Part Description | Right A C Condenser Fan Assembly |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |
Connector Gender | Female |
Connector qty | 1 |
Connector Shape | Rectangle |
Connector Type | 2 Terminal connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 6 |
Fan 2 Blade Quantity | 6 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 1 |
Height IN | 14.750 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Mount Location | Condenser Fan |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 22.000 |
Package Depth MM | 558.800 |
Package Height IN | 9.500 |
Package Height MM | 241.300 |
Package Length IN | 12.000 |
Package Length MM | 304.800 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | NA |
Style | Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 2 |
UPC | 096361755093 |
Voltage | 12 |
Width IN | 21.000 |
Year Make Model | Trim | Engine |
---|---|---|
1992-1999 Buick LeSabre | All Trims | 6 Cyl 3.8L |
1991-1996 Buick Park Avenue | All Trims | All Engines |
1992-1999 Oldsmobile 88 | All Trims | All Engines |
1996 Oldsmobile 98 | All Trims | All Engines |
1996-1999 Oldsmobile LSS | All Trims | All Engines |
1997-1998 Oldsmobile Regency | All Trims | All Engines |
1992-1999 Pontiac Bonneville | All Trims | All Engines |
