Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 75485 |

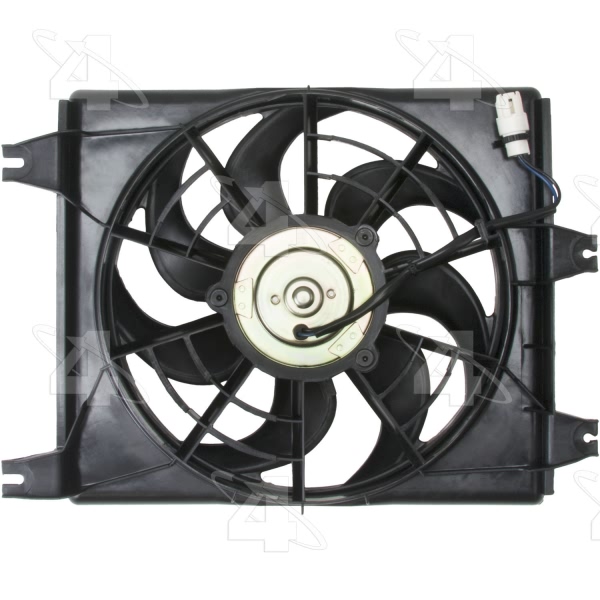

Part Description | Right A C Condenser Fan Assembly |
Blade Material | Plastic |
Blade Type | Rigid |
Connector Gender | Female or Male |
Connector qty | 1 |
Connector Shape | Oval |
Connector Type | 2 wire lead w/ Connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 6 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 1 |
Height IN | 20.500 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Condenser Fan |
Mount Location | Condenser Fan |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 20.250 |
Package Depth MM | 514.350 |
Package Height IN | 5.750 |
Package Height MM | 146.050 |
Package Length IN | 16.500 |
Package Length MM | 419.100 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Condenser Fan |
Terminal Gender | Female |
Terminal Quantity | 2 |
UPC | 096361754850 |
Voltage | 12 |
Width IN | 16.750 |
Year Make Model | Trim | Engine |
---|---|---|
1992-1995 Hyundai Elantra | All Trims | All Engines |
