Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 97582 |

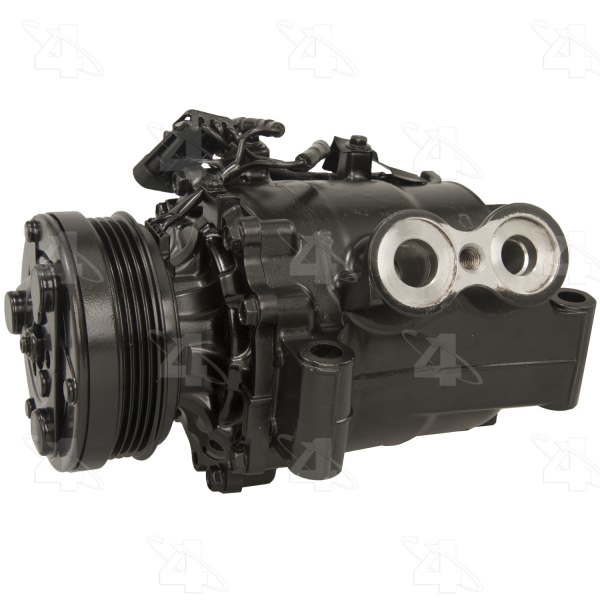

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 3.796875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | TRSA09K |
Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.828125 |
Mount Distance MM | 46.228 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24355] / Sealing Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24354] / Sealing Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 96.520 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 3.796875 |
Pulley Outside Diameter | 3.796875 |
Pulley Ridge Diameter | 3.796875 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Switch Included | Heat Switch |
Terminal Type | Pin |
UPC | 096361975828 |
Year Make Model | Trim | Engine |
---|---|---|
2004 Buick Rainier | All Trims | 8 Cyl 5.3L |
2003-2006 Chevrolet SSR | All Trims | All Engines |
2003-2004 Chevrolet Trailblazer EXT | All Trims | 8 Cyl 5.3L |
2003-2004 GMC Envoy XL | All Trims | 8 Cyl 5.3L |
2004 GMC Envoy XUV | All Trims | 8 Cyl 5.3L |
