Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 97570 |

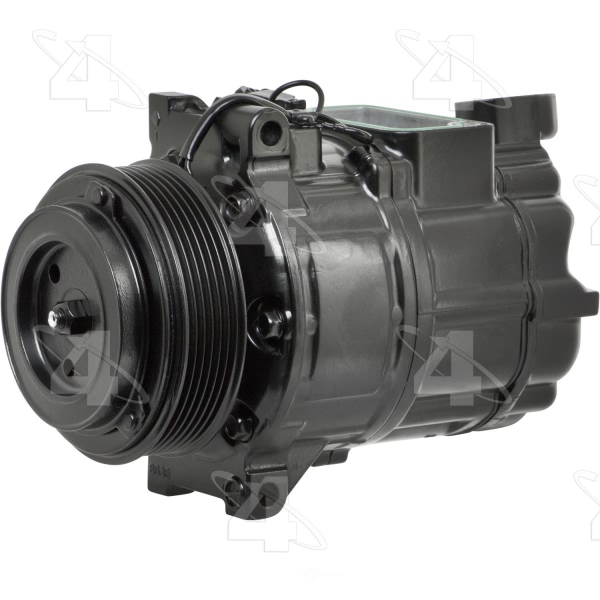

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.3125 |

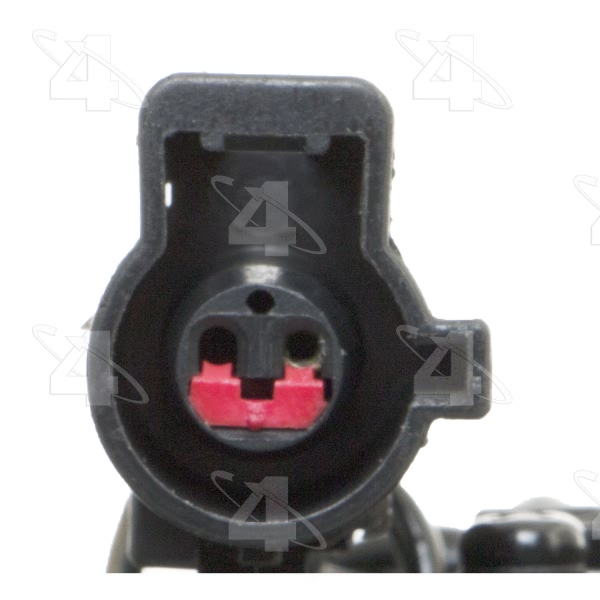

Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | PXV16 |

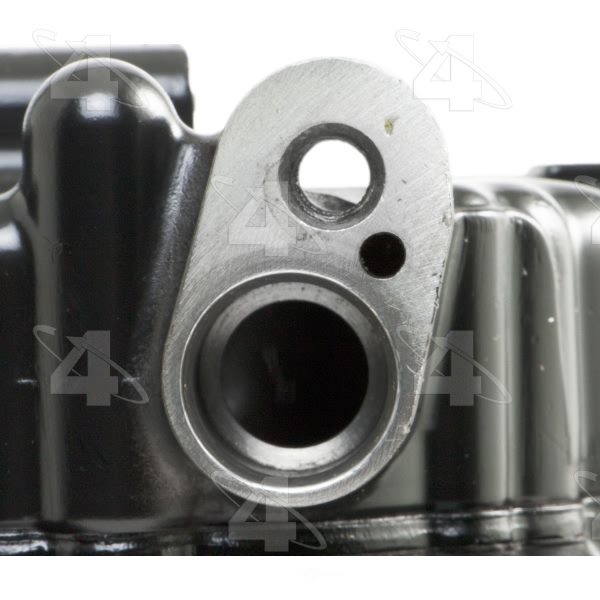

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.765625 |
Mount Distance MM | 19.558 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 109.550 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.3125 |
Pulley Outside Diameter | 4.3125 |
Pulley Ridge Diameter | 4.3125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Butt Connector |
UPC | 096361975705 |
Year Make Model | Trim | Engine |
---|---|---|
2006-2008 Land Rover Range Rover | All Trims | 8 Cyl 4.4L |
2006-2009 Land Rover Range Rover | All Trims | 8 Cyl 4.2L |
2006-2008 Land Rover Range Rover Sport | All Trims | 8 Cyl 4.4L |
2006-2009 Land Rover Range Rover Sport | All Trims | 8 Cyl 4.2L |
