Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 97569 |
Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 3.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | Scroll |

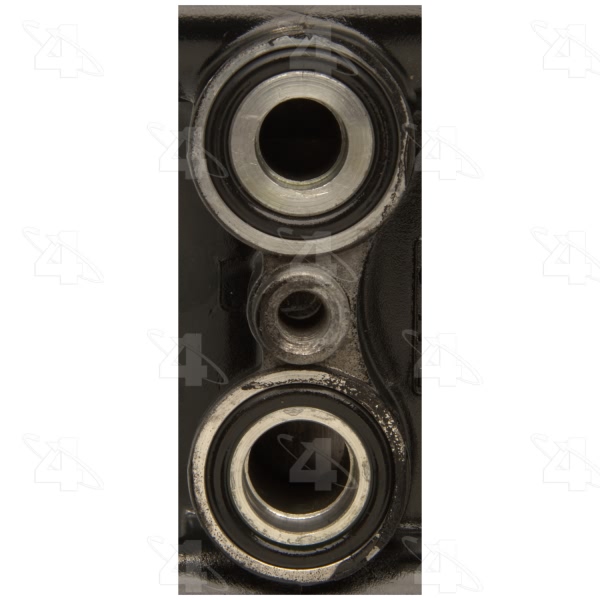

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.921875 |
Mount Distance MM | 48.768 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24632] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 95.250 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 3.750 |
Pulley Outside Diameter | 3.750 |
Pulley Ridge Diameter | 3.750 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Heat Sensor |
Terminal Type | Pin |
UPC | 096361975699 |
Year Make Model | Trim | Engine |
---|---|---|
2005-2007 Ford Five Hundred | All Trims | All Engines |
2005-2007 Ford Freestyle | All Trims | All Engines |
2005-2007 Mercury Montego | All Trims | All Engines |
