Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 97567 |

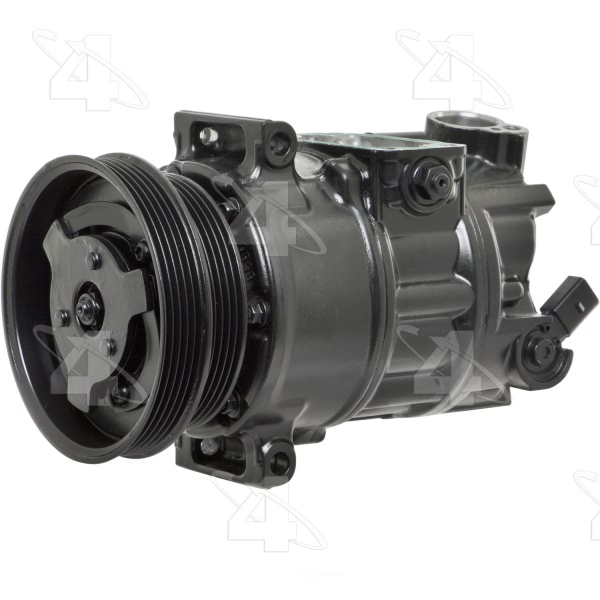

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.375 |
Coil Clock Position | Wire Lead |
Coil Type | Coil Less |
Coil Voltage | NR |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | PXV16 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.000 |
Mount Distance B IN | 2.03125 |
Mount Distance B MM | 51.816 |
Mount Distance MM | 25.400 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24659] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter B IN Secondary | 5.000 |
Pulley Diameter B MM Secondary | 127.000 |
Pulley Diameter MM | 111.125 |
Pulley Groove Quantity | 10 |
Pulley Lip Diameter | 4.375 |
Pulley Outside Diameter | 4.375 |
Pulley Ridge Diameter | 4.375 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361975675 |
Year Make Model | Trim | Engine |
---|---|---|
2012 Audi TT RS Quattro | All Trims | All Engines |
2006 Volkswagen Beetle | All Trims | 5 Cyl 2.5L |
2012 Volkswagen Beetle | All Trims | 5 Cyl 2.5L |
2005 Volkswagen Bora | All Trims | All Engines |
2006-2010 Volkswagen Bora | All Trims | 5 Cyl 2.5L |
2010-2012 Volkswagen Golf | All Trims | 5 Cyl 2.5L |
2010-2012 Volkswagen Golf SportWagen | All Trims | All Engines |
2006-2009 Volkswagen Rabbit | All Trims | All Engines |
