Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 97558 |

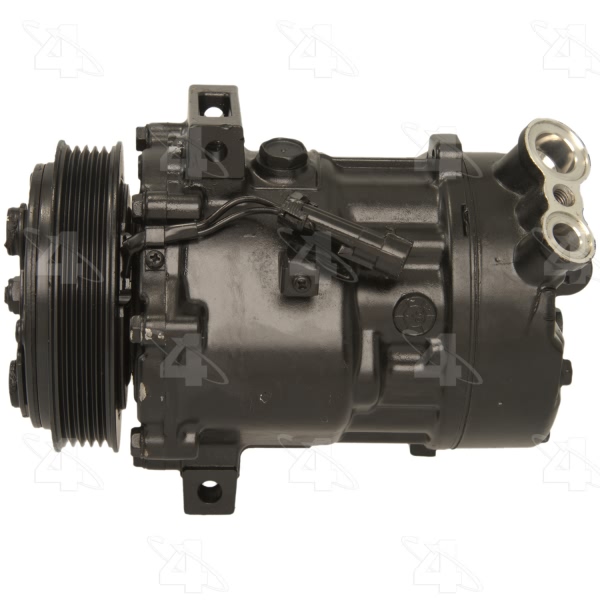

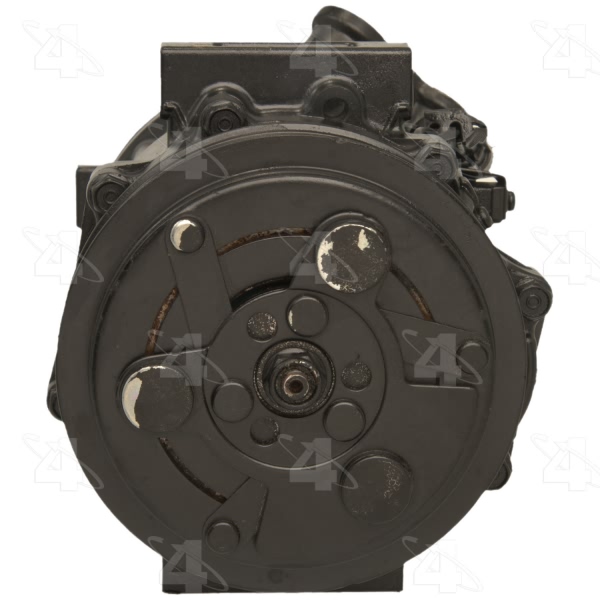

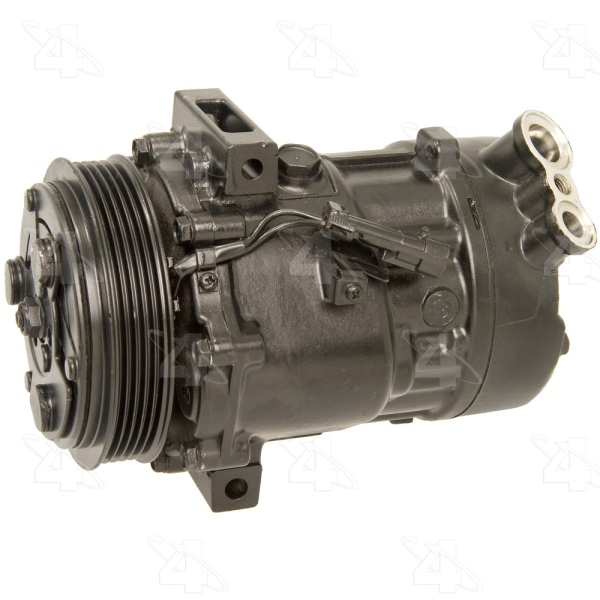

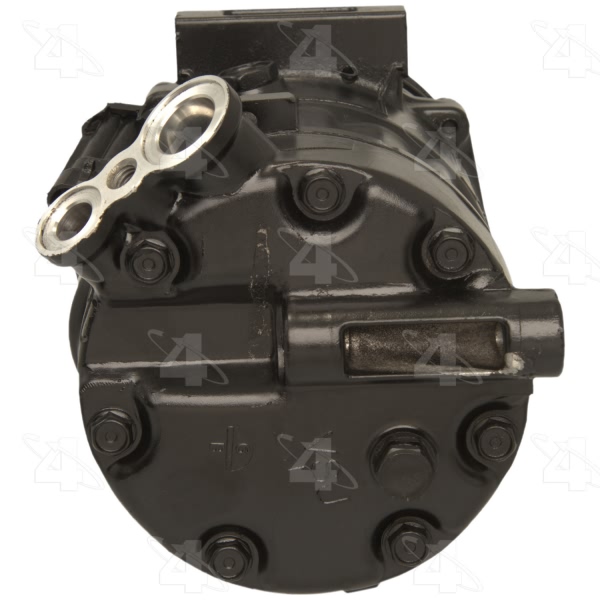

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Comp Head Prt Config | Top-Horiz-Pad-SealingWasher |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Head Type | VSJ |
Compressor Type | SD7V16 |

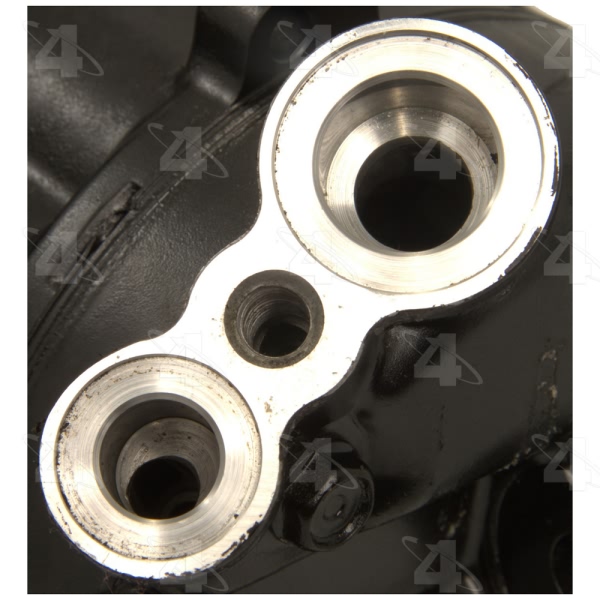

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.1875 |
Mount Distance MM | 30.226 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 146.050 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 5.750 |
Pulley Outside Diameter | 5.750 |
Pulley Ridge Diameter | 5.750 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |

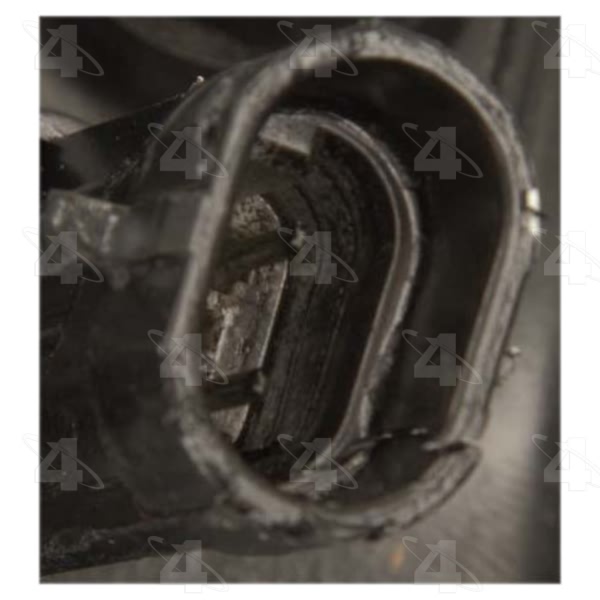

Terminal Type | Pin |
UPC | 096361975583 |
Year Make Model | Trim | Engine |
---|---|---|
2005 Saab 9-3 | All Trims | All Engines |
2006-2009 Saab 9-3 | All Trims | 4 Cyl 2.0L |
2010-2011 Saab 9-3 | All Trims | All Engines |
2010-2011 Saab 9-3X | All Trims | All Engines |
