Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 97480 |

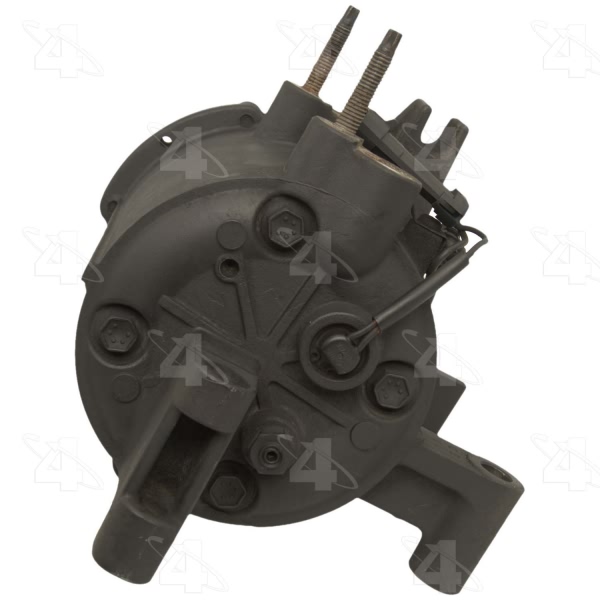

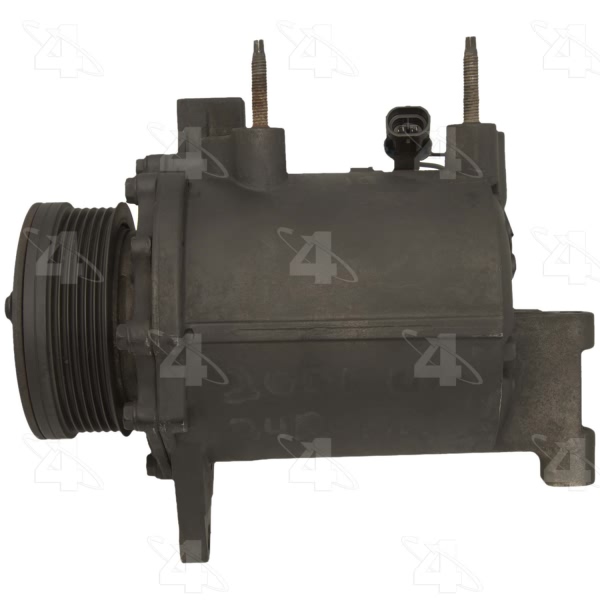

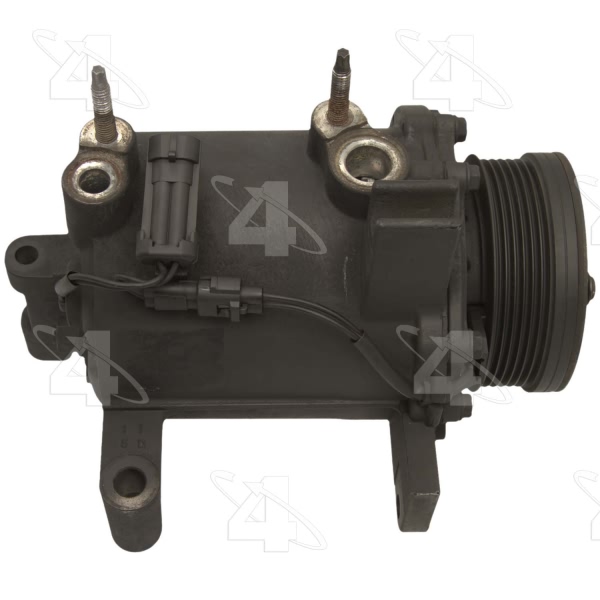

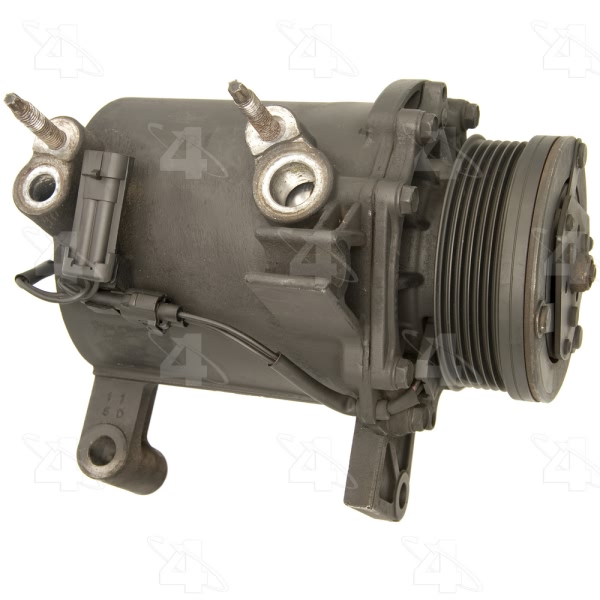

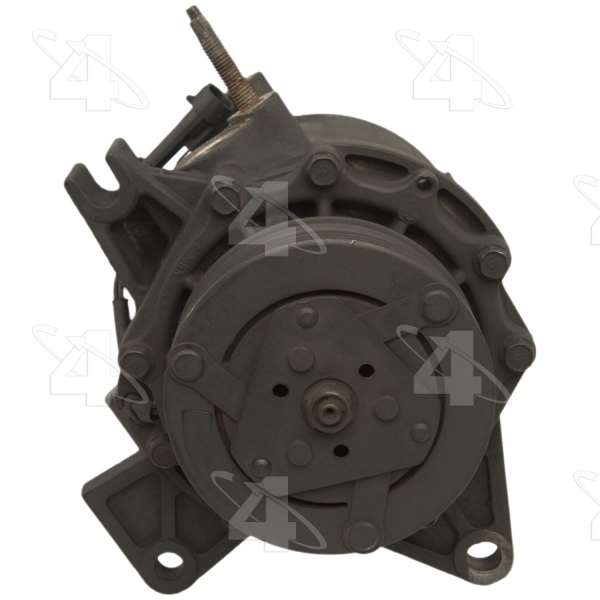

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 3.9375 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | MSC105CVSG2 |

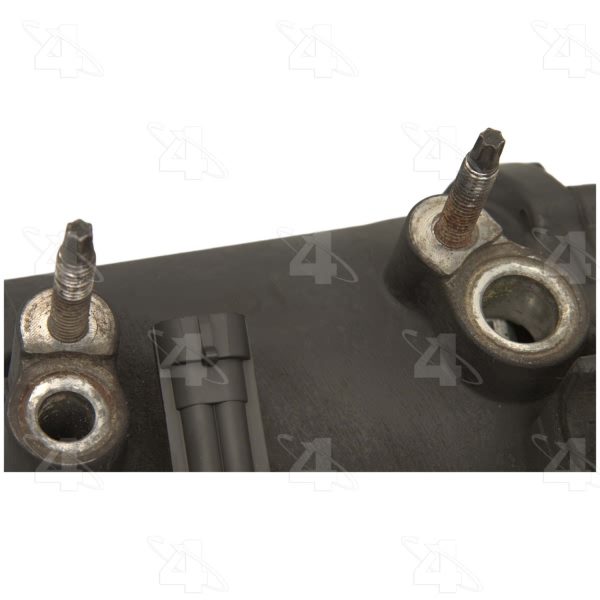

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.015625 |
Mount Distance MM | 25.908 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 100.025 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 3.9375 |
Pulley Outside Diameter | 3.9375 |
Pulley Ridge Diameter | 3.9375 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Switch Included | Heat Switch |

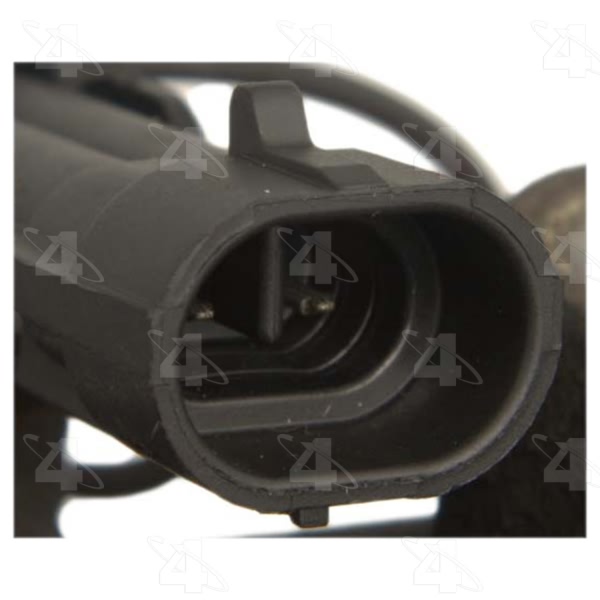

Terminal Type | Pin |
UPC | 096361974807 |
Year Make Model | Trim | Engine |
---|---|---|
2001-2002 Oldsmobile Aurora | All Trims | 8 Cyl 4.0L |
2003 Oldsmobile Aurora | All Trims | All Engines |
