Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 97470 |

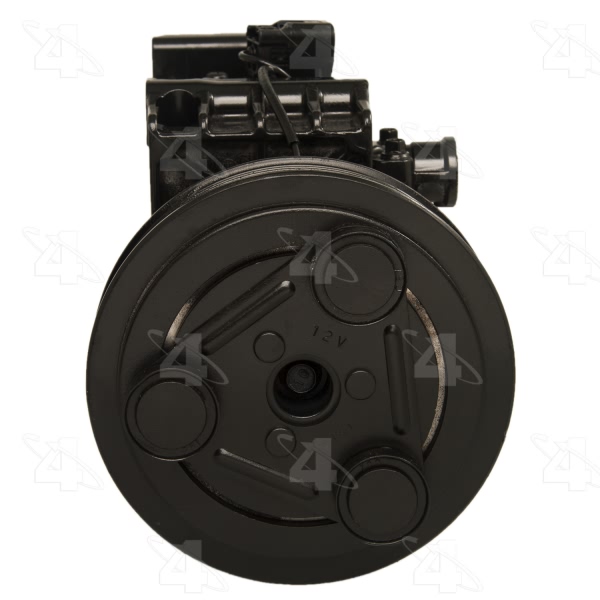

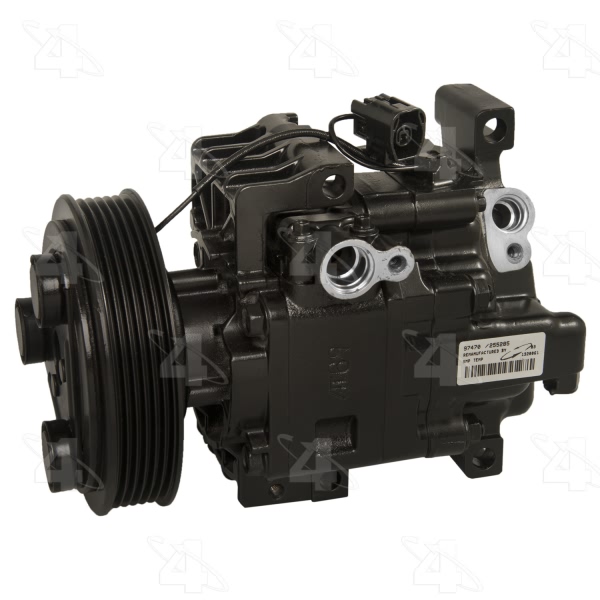

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Type | H12A1AK4DW |

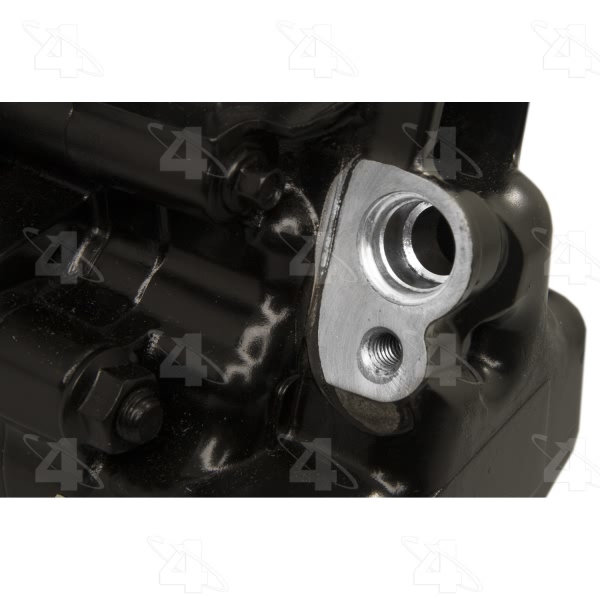

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.390625 |
Mount Distance MM | 35.306 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 123.825 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.875 |
Pulley Outside Diameter | 4.875 |
Pulley Ridge Diameter | 4.875 |
Refrigerant Type | R134a |

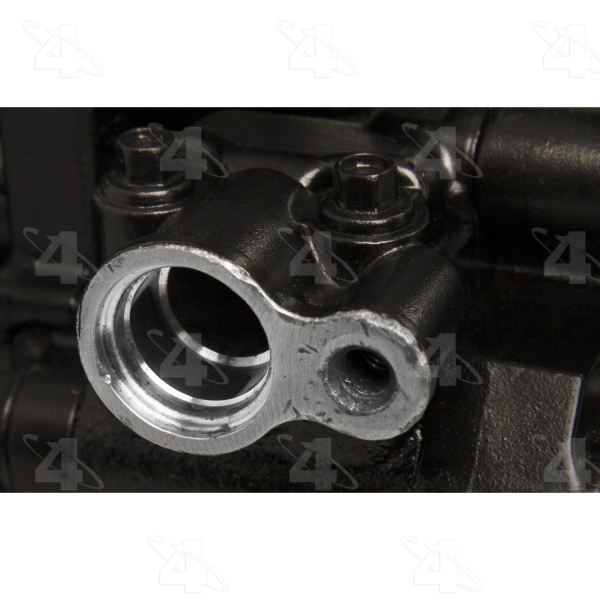

Suction Port Type | O-Ring |

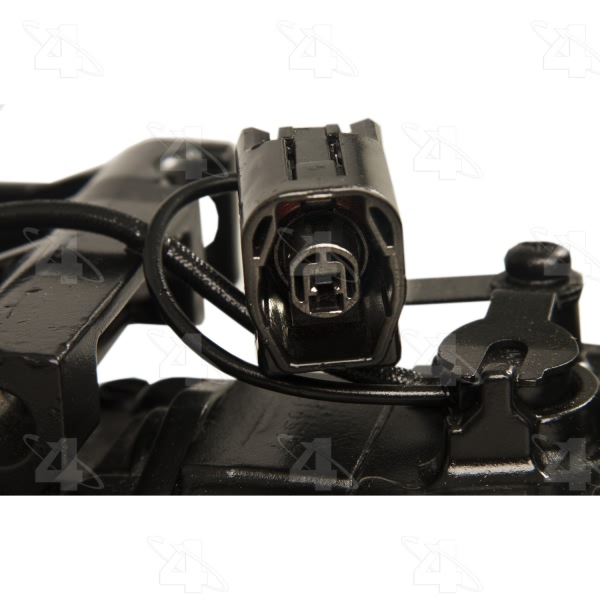

Terminal Type | Lead Wire |
UPC | 096361974708 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2009 Mazda 3 | All Trims | All Engines |
2009 Mazda 3 Sport | All Trims | All Engines |
2006-2007 Mazda 6 | All Trims | 4 Cyl 2.3L |
