Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 97448 |

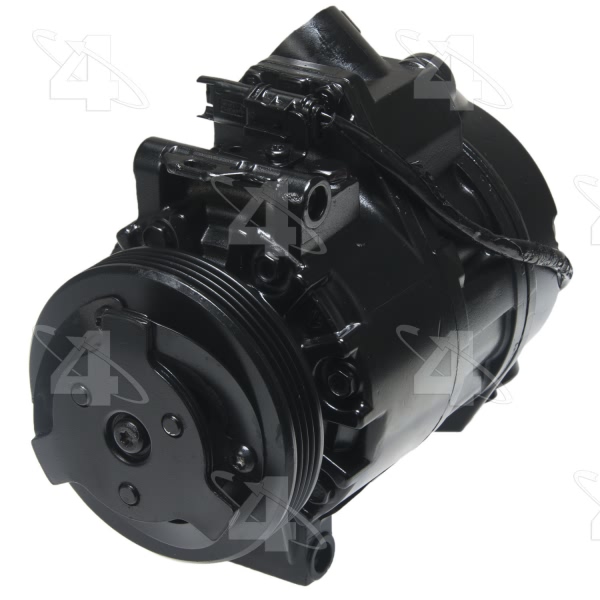

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.3125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | CSE17C |
Distance From Clutch To Mounting Flange | 0.953125 |

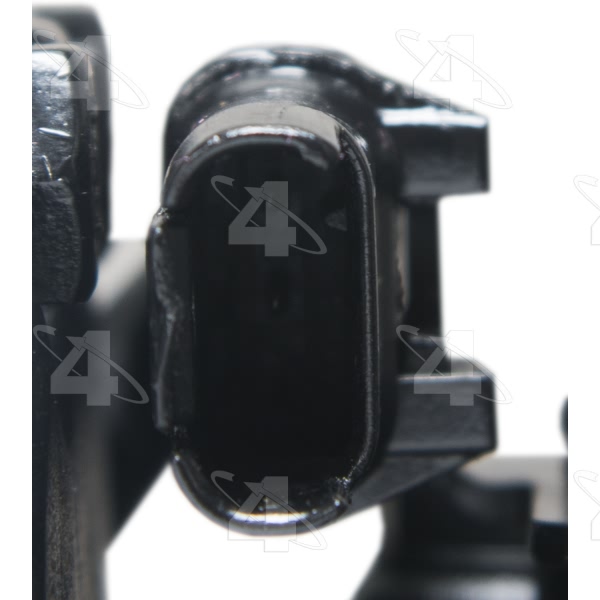

ECV Harness Connector | Compressor SE30F, Vehicle SE22M |
Mount Distance MM | 24.384 |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24659] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 109.550 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.3125 |
Pulley Outside Diameter | 4.3125 |
Pulley Ridge Diameter | 4.3125 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361974487 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2010 BMW X5 | All Trims | 8 Cyl 4.8L |
2010 BMW X5 | All Trims | 8 Cyl 4.4L |
2010 BMW X6 | All Trims | 8 Cyl 4.4L |
