Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 97447 |

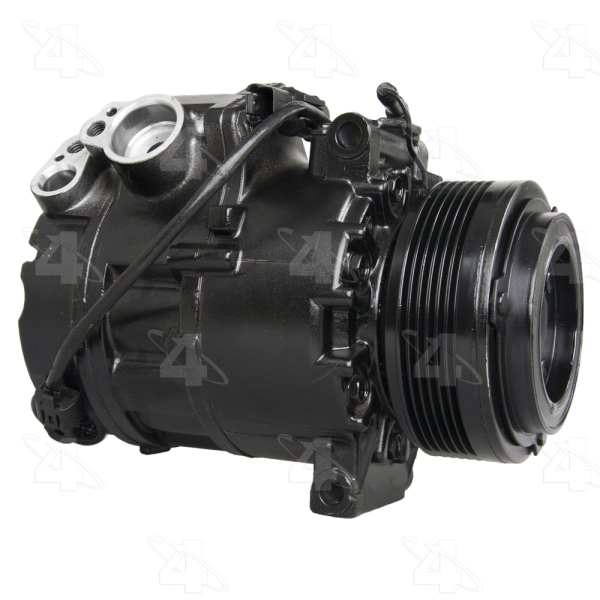

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | CSE717 |
Distance From Clutch To Mounting Flange | 0.9375 |
ECV Harness Connector | Compressor SE30F, Vehicle SE22M |
Mount Distance MM | 23.876 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24659] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 107.950 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361974470 |
Year Make Model | Trim | Engine |
---|---|---|
2010 BMW X1 | All Trims | 6 Cyl 3.0L |
2008-2010 BMW X3 | All Trims | 6 Cyl 3.0L |
2007-2010 BMW X5 | All Trims | 6 Cyl 3.0L |
2008-2010 BMW X6 | All Trims | 6 Cyl 3.0L |
