Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 97396 |

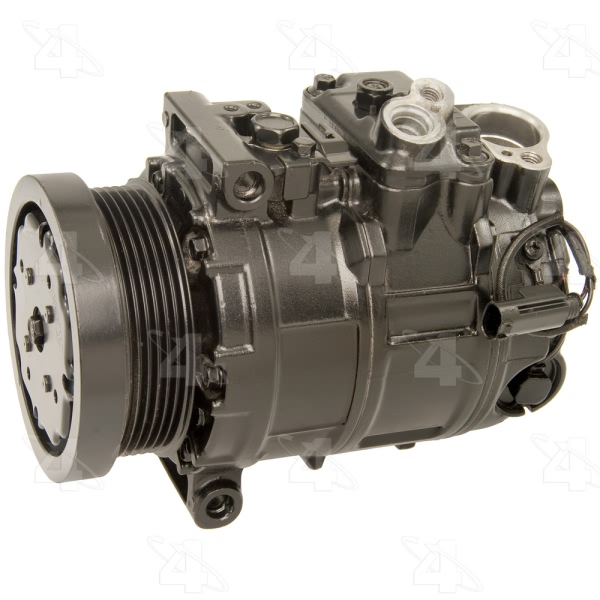

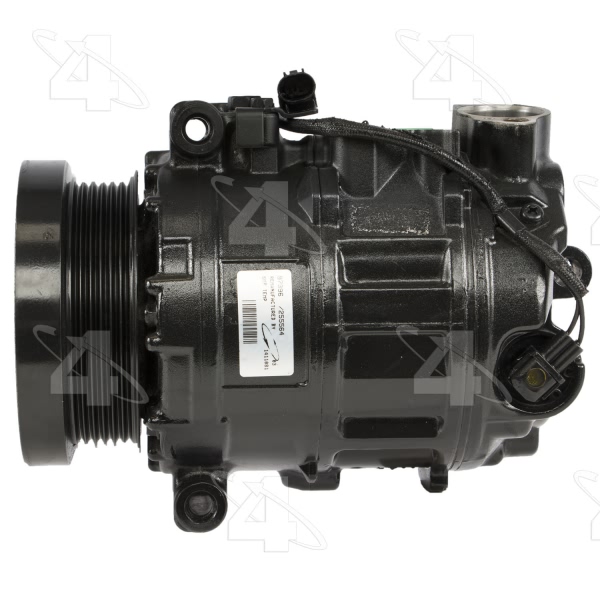

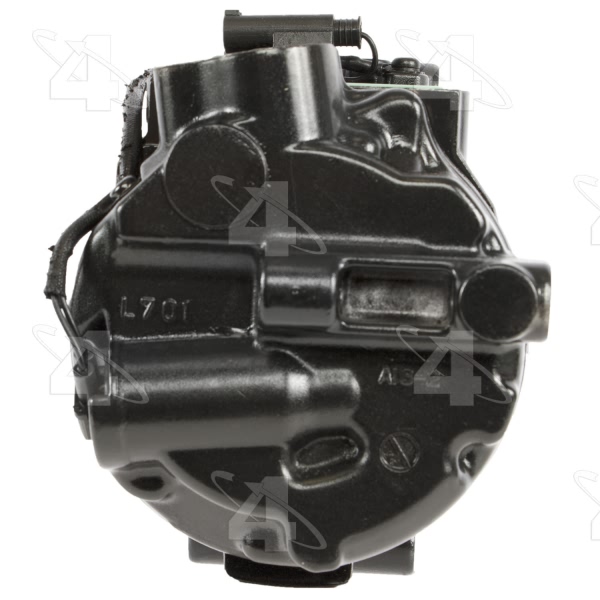

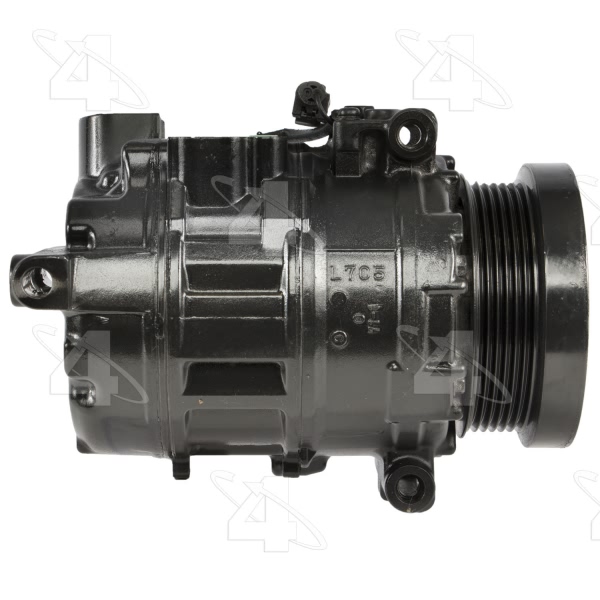

Part Description | Remanufactured A C Compressor With Clutch |

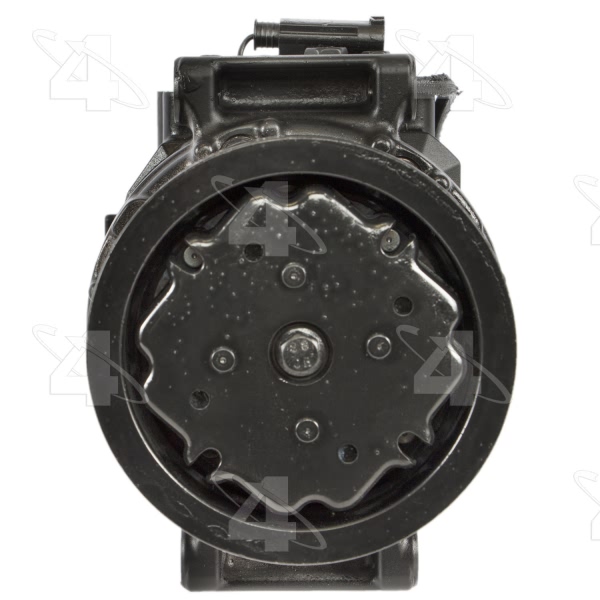

Clutch Included | Yes |
Clutch Maximum Diameter | 4.000 |
Coil Clock Position | NR |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SEU17C |

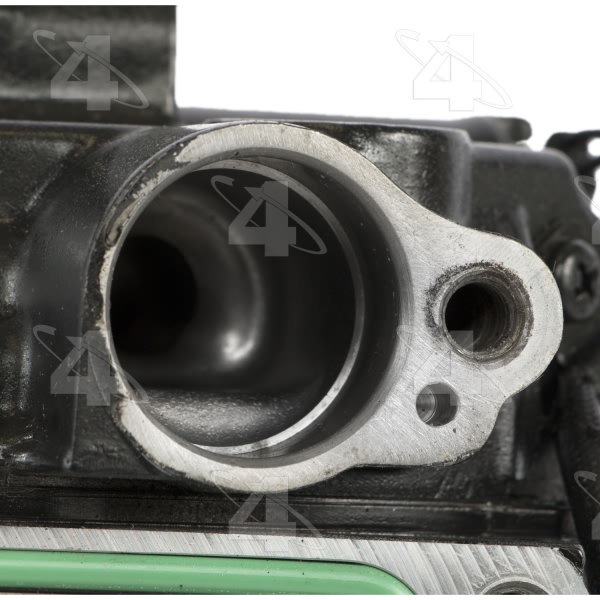

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.625 |

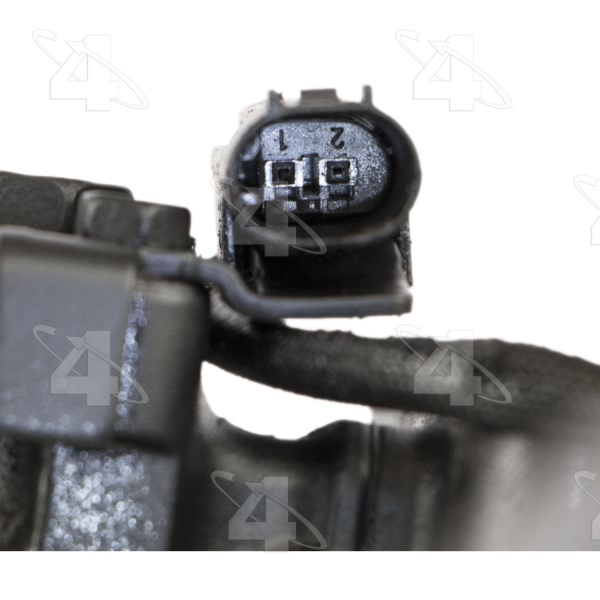

ECV Harness Connector | Compressor SE05F, Vehicle SE22M |
Mount Distance MM | 15.748 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |

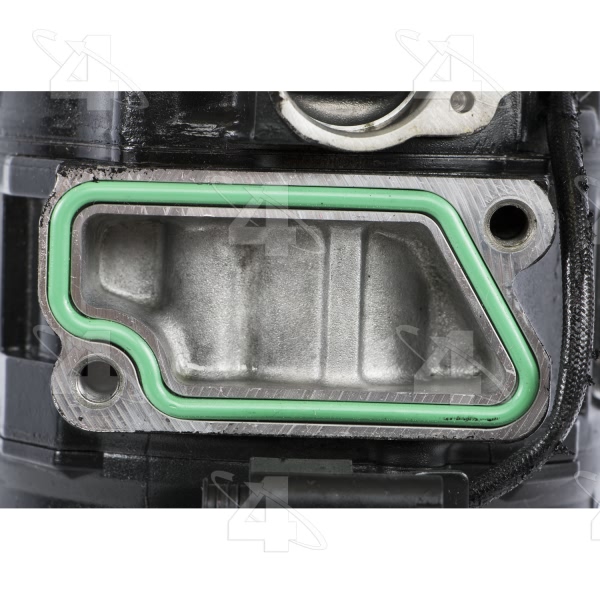

O-Ring A Number/Desc | [24670] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 101.600 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.000 |
Pulley Outside Diameter | 4.000 |
Pulley Ridge Diameter | 4.000 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361973961 |
Year Make Model | Trim | Engine |
---|---|---|
2002-2003 Mercedes-Benz CL500 | All Trims | All Engines |
2006 Mercedes-Benz CL500 | All Trims | All Engines |
2002 Mercedes-Benz CL55 AMG | All Trims | All Engines |
1998 Mercedes-Benz S420 | All Trims | All Engines |
1999 Mercedes-Benz S430 | All Trims | All Engines |
2002-2003 Mercedes-Benz S430 | All Trims | All Engines |
1998-1999 Mercedes-Benz S500 | All Trims | All Engines |
2002-2006 Mercedes-Benz S500 | All Trims | All Engines |
1998 Mercedes-Benz S600 | All Trims | All Engines |
2001-2006 Mercedes-Benz SL500 | All Trims | All Engines |
