Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 97395 |
Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 3.9375 |
Coil Clock Position | NR |
Coil Type | Coil Less |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 5SE12C |

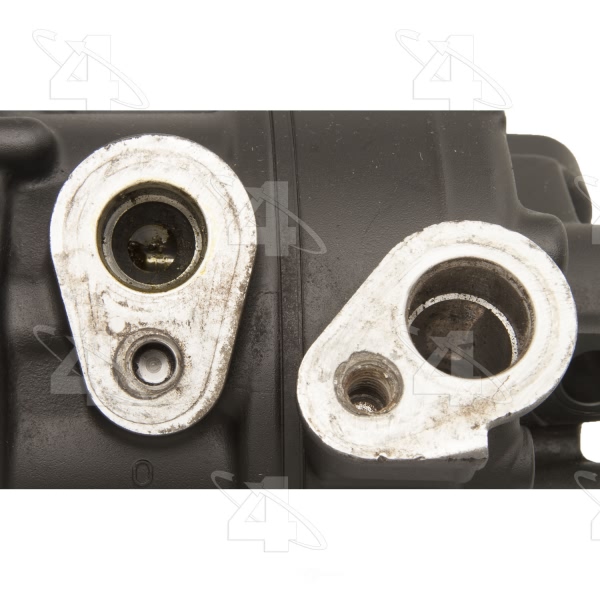

Discharge Port Type | Gasket |
Distance From Clutch To Mounting Flange | 0.78125 |

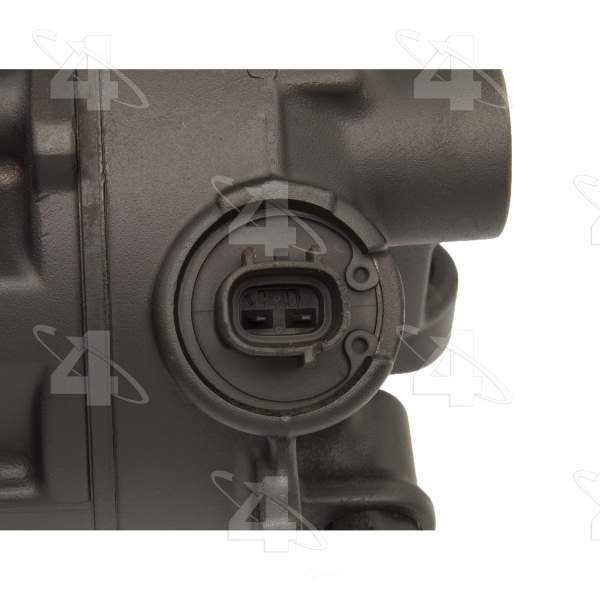

ECV Harness Connector | Compressor SE10F, Vehicle SE10M |
Mount Distance MM | 19.812 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 100.025 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 3.9375 |
Pulley Outside Diameter | 3.9375 |
Pulley Ridge Diameter | 3.9375 |
Refrigerant Type | R134a |
Suction Port Type | Gasket |
Terminal Type | Pin |
UPC | 096361973954 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2008 Dodge Caliber | All Trims | All Engines |
2009 Dodge Caliber | All Trims | 4 Cyl 2.0L |
2007-2008 Jeep Compass | All Trims | All Engines |
2007-2008 Jeep Patriot | All Trims | All Engines |
