Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 97390 |

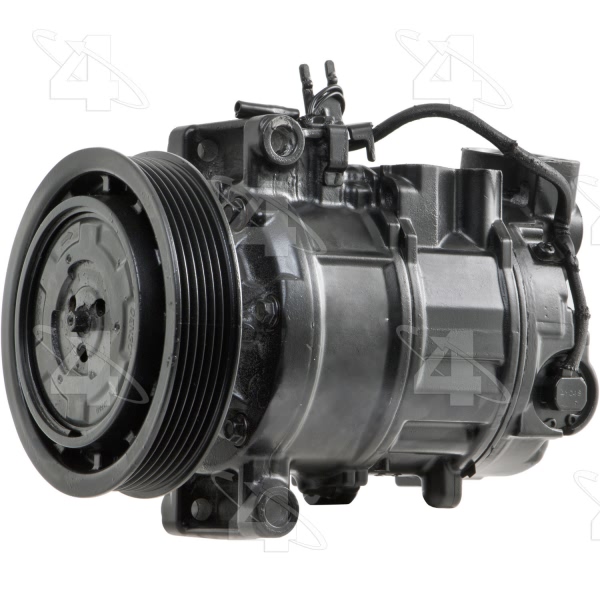

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.9375 |
Coil Clock Position | NR |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 6SEU14C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.234375 |
ECV Harness Connector | Compressor SE05F, Vehicle SE22M |
Mount Distance MM | 31.496 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24659] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 125.425 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.9375 |
Pulley Outside Diameter | 4.9375 |
Pulley Ridge Diameter | 4.9375 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Butt Connector |
UPC | 096361973909 |
Year Make Model | Trim | Engine |
---|---|---|
2006 Audi A6 | All Trims | 6 Cyl 3.2L |
2007 Audi A6 | All Trims | All Engines |
2009-2011 Audi A6 | All Trims | All Engines |
2005-2008 Audi A6 Quattro | All Trims | 6 Cyl 3.2L |
2009-2011 Audi A6 Quattro | All Trims | 6 Cyl 3.0L |
