Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 97386 |

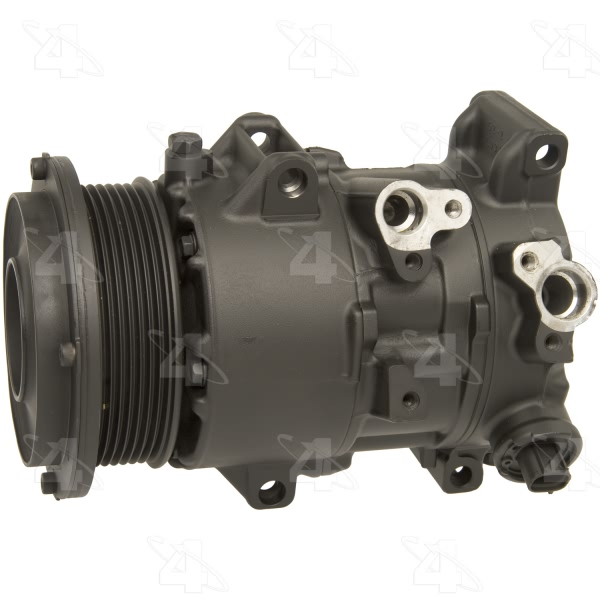

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.500 |
Coil Clock Position | NR |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 6SEU16C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.625 |
ECV Harness Connector | Compressor SE10F, Vehicle SE10M |
Mount Distance MM | 41.148 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 114.300 |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 4.500 |
Pulley Outside Diameter | 4.500 |
Pulley Ridge Diameter | 4.500 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Pressure Switch |
Terminal Type | Butt Connector |
UPC | 096361973862 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2009 Toyota Camry | All Trims | 4 Cyl 2.4L |
2006-2008 Toyota RAV4 | All Trims | 4 Cyl 2.4L |
