Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 97370 |

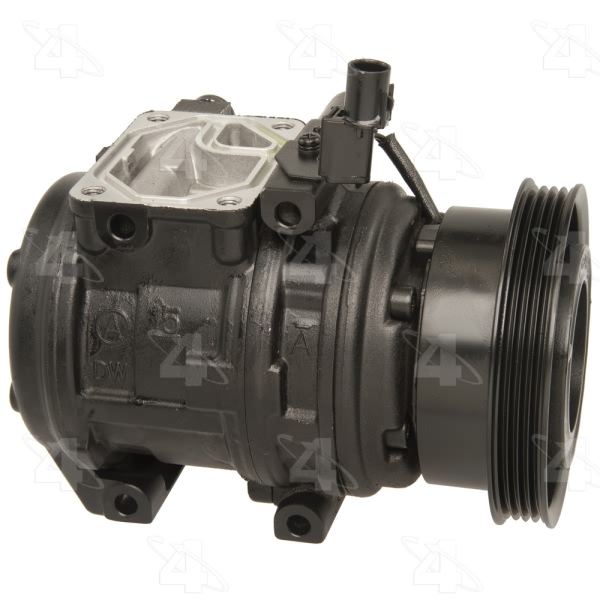

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.625 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10PA15C |
Discharge Port Type | Pad Mount |
Distance From Clutch To Mounting Flange | 2.703125 |
Mount Distance MM | 68.580 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24156] / Compressor Manifold Port Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 117.475 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.625 |
Pulley Outside Diameter | 4.625 |
Pulley Ridge Diameter | 4.625 |
Refrigerant Type | R134a |
Suction Port Type | Pad Mount |
Terminal Type | Pin |
UPC | 096361973701 |
Year Make Model | Trim | Engine |
---|---|---|
2005-2007 Hyundai Tucson | All Trims | 4 Cyl 2.0L |
2009 Hyundai Tucson | All Trims | 4 Cyl 2.0L |
2004 Kia Spectra | All Trims | 4 Cyl 2.0L |
2005-2006 Kia Spectra | All Trims | All Engines |
2005-2006 Kia Spectra5 | All Trims | All Engines |
2005-2008 Kia Sportage | All Trims | 4 Cyl 2.0L |
